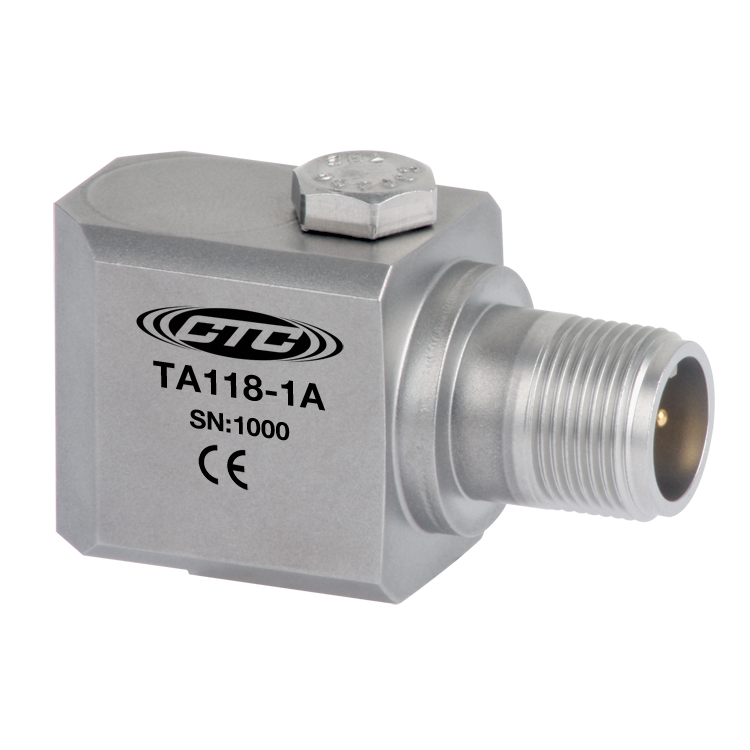

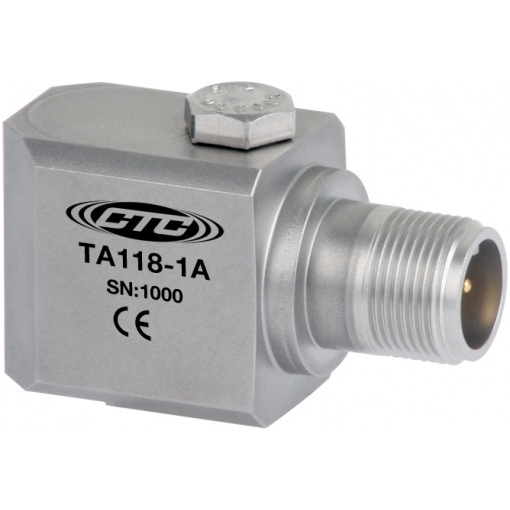

TA118 – Dual Output Temperature / Acceleration, Top Exit Connector / Cable, 50 mV/g, 10 mV/°C
TA118 – Dual Output Temperature / Acceleration, Top Exit Connector / Cable, 50 mV/g, 10 mV/°C
TA118 – Dual Output Temperature / Acceleration, Top Exit Connector / Cable, 50 mV/g, 10 mV/°C
- Sensitivity: 50 mV/g
- Frequency Response (±3dB): 60-750,000 CPM
- Dynamic Range: ± 100 g, peak
- Power Requirements Voltage Source: 18-30 VDC
- Temperature Range: -40 to 250°F (-40 to 121°C)
- Case Material: 316L Stainless Steel
- Connector: 3 Pin MIL-C-5015
- Max Temp: 250°F (121°C)
Options
TA118-1A
Dual output sensor, temperature/acceleration, 50 mV/g, 10 mV/C, side connector;
TA118-2C
Dual output sensor, temperature/acceleration, 50 mV/g, 10 mV/C, side connector;
TA118-3C
Dual output sensor, temperature/acceleration, 100 mV/g, 10 mV/C, side connector, armor jacketed cable; 4 conductor red Teflon® cable, stainless steel armor, .270″ OD, 400 F;
