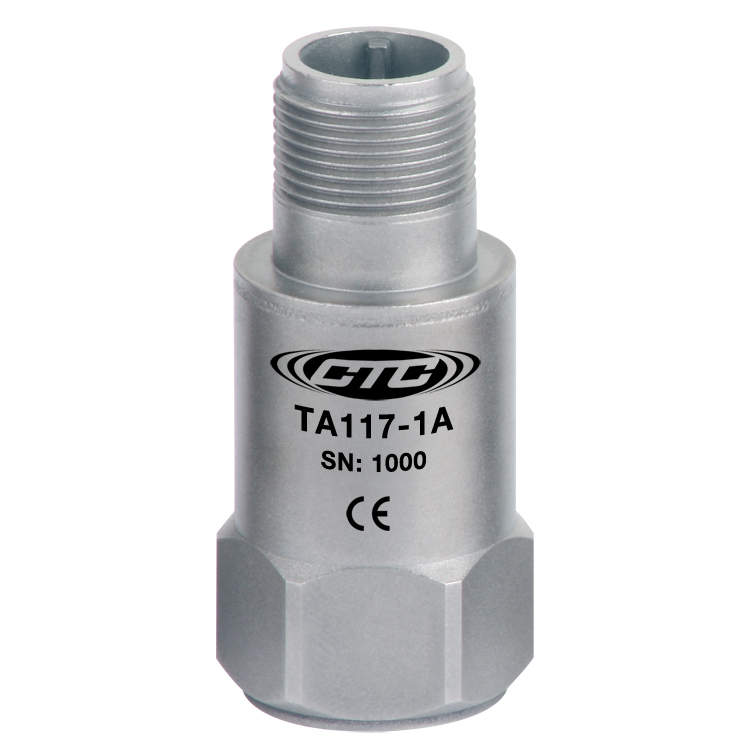

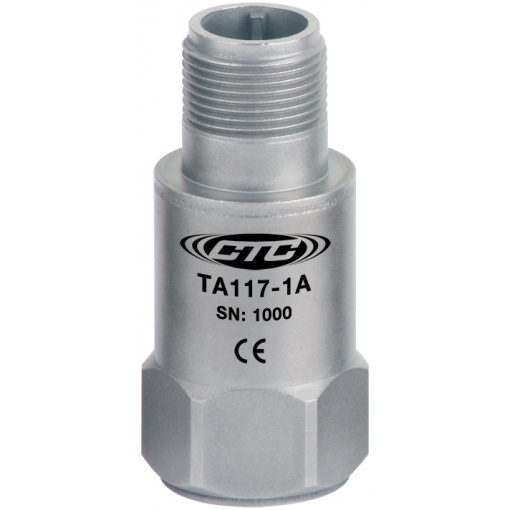

TA117 – Dual Output Temperature / Acceleration, Top Exit Connector / Cable, 50 mV/g, 10 mV/°C

• Sensitivity: 50 mV/g
• Frequency Response (±3dB): 60-750,000 CPM
• Dynamic Range: ± 100 g, peak
• Power Requirements Voltage Source: 18-30 VDC
• Temperature Range: -40 to 250°F (-40 to 121°C)
• Case Material: 316L Stainless Steel
• Connector: 3 Pin MIL-C-5015
• Max Temp: 250°F (121°C)

Options

TA117-1A
Dual output sensor, temperature/acceleration, 50 mV/g, 10 mV/C, top connector;

TA117-2C
Dual output sensor, temperature/acceleration, 50 mV/g, 10 mV/C, top exit integral cable,

TA117-3C
Dual output sensor temperature/acceleration, 50 mV/g, 10 mV/C, top exit armor integral cable,
