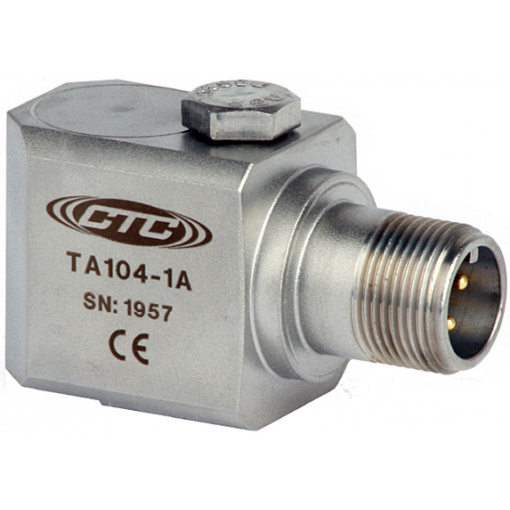

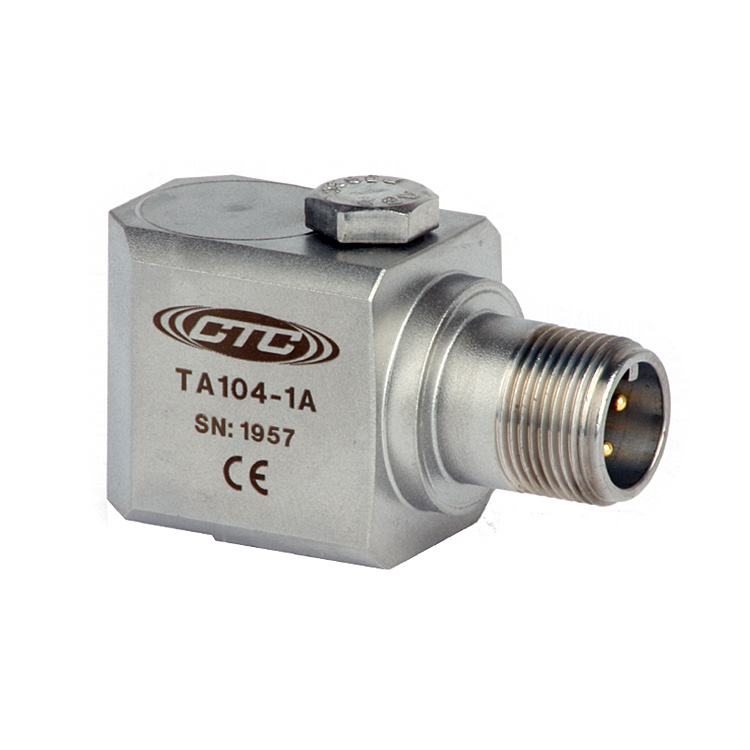

TA104 – Dual Output, Temperature / Acceleration, Side Exit Connector / Cable, 100 mV/g, 10 mV/°C

• Sensitivity: 100 mV/g
• Frequency Response (±3dB): 30-600,000 CPM
• Dynamic Range: ± 50 g, peak
• Power Requirements Voltage Source: 18-30 VDC
• Temperature Range: -40 to 250°F (-40 to 121°C)
• Case Material: 316L Stainless Steel
• Connector: 3 Pin MIL-C-5015
• Max Temp: 250°F (121°C)

Options

TA104-1A
Dual output sensor, temperature/acceleration, 100 mV/g, 10 mV/C, side connector,

TA104-2C
Dual output sensor, temperature/acceleration, 100 mV/g, 10 mV/C, side connector;

TA104-3C
Dual output sensor, temperature/acceleration, 100 mV/g, 10 mV/C, side connector, armor jacketed cable; 4 conductor red Teflon® cable, stainless steel armor, .270″” OD, 400 F; 0 ft. overall length; Stainless steel armor protected, 4 conductor Teflon® cable, twisted, shielded pair, .250″” OD, 400 F; 0 ft. overall length;
