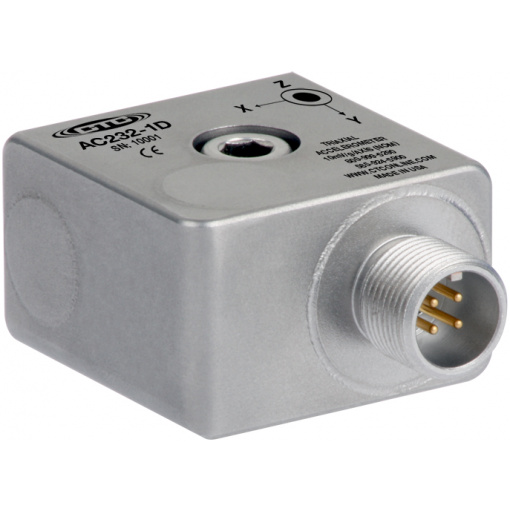

AC232 – Premium Modal/ODS Triaxial Accelerometer, Connector/Cable, 10 mV/g, ± 5%

• Sensitivity: 10 mV/g
• Frequency Response (±3dB): 60-600,000 CPM
• Dynamic Range: ± 500 g, peak
• Power Requirements Voltage Source: 18-30 VDC
• Temperature Range: -65 to 250°F
  (-54 to 121°C)
• Case Material: 316L Stainless Steel
• Connector: 4 Pin J Connector
• Max Temp: 250°F (121°C)

Options

AC232-1D�
Premium triaxial accelerometer, 10 mV/g, for Modal & ODS analysis, 4 pin connector

AC232-2D�
Premium triaxial accelerometer, 10 mV/g, for Modal & ODS analysis, integral black polyurethane jacketed cable

AC232-3D�
Premium triaxial accelerometer, 10 mV/g, for Modal & ODS analysis, integral armor jacketed cable
