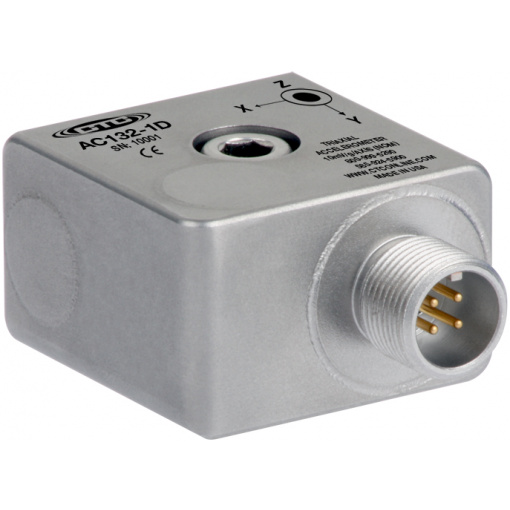

AC132 – Low Cost Triaxial Accelerometer, for Modal & ODS Analysis, Connector/Cable, 10 mV/g

• Sensitivity: 10 mV/g
• Frequency Response (±3dB): 60-480,000 CPM
• Dynamic Range: ± 500 g, peak
• Power Requirements Voltage Source: 18-30 VDC
• Temperature Range: -58 to 250°F
  (-50 to 121°C)
• Case Material: 316L Stainless Steel
• Connector: 4 Pin J Connector
• Max Temp: 250°F
  (121°C)

Options

AC132-1D�
Triaxial accelerometer, 10 mV/g, for Modal & ODS analysis, 4 pin connector

AC132-2D�
Triaxial accelerometer, 10 mV/g, for Modal & ODS analysis, integral black polyurethane jacketed cable

AC132-3D�
Triaxial accelerometer, 10 mV/g, for Modal & ODS analysis, integral armor jacketed cable
