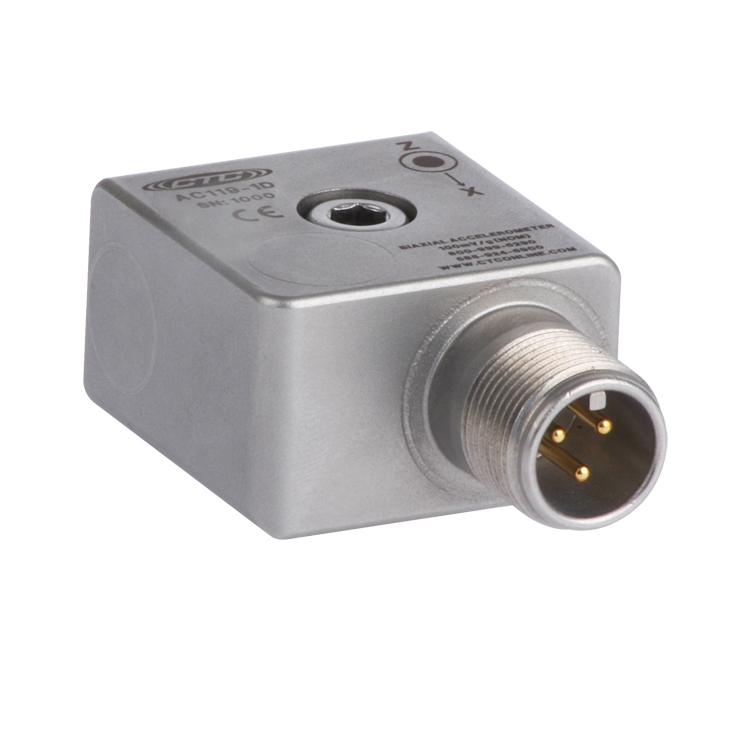

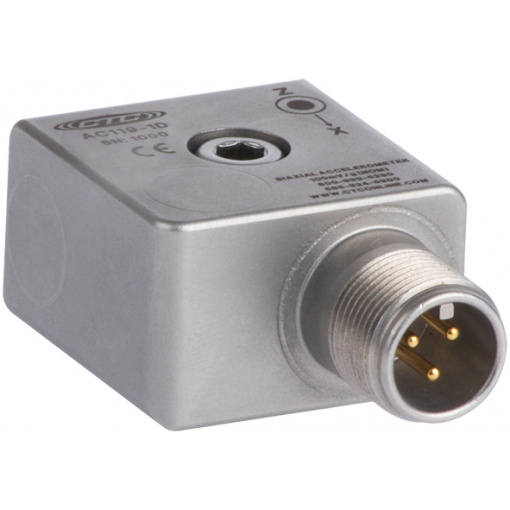

AC119 – Biaxial accelerometer, 100 mV/g, with X and Z axis

• Sensitivity: 100 mV/g
• Frequency Response (±3dB): 60-390,000 CPM
• Dynamic Range: ± 50 g, peak
• Power Requirements Voltage Source: 18-30 VDC
• Temperature Range: -58 to 250°F
  (-50 to 121°C)
• Case Material: 316L Stainless Steel
• Connector: 3 Pin MIL
• Max Temp: 250°F
  (121°C)

Options

AC119-1D
Biaxial accelerometer, 100 mV/g, 3 pin connector, with X and Z axis.;

AC119-2D�
Biaxial accelerometer, 100 mV/g, integral polyurethane jacketed cable, with X and Z axis.

AC119-3D�
Biaxial accelerometer, 100 mV/g, integral armored cable, with X and Z axis.
