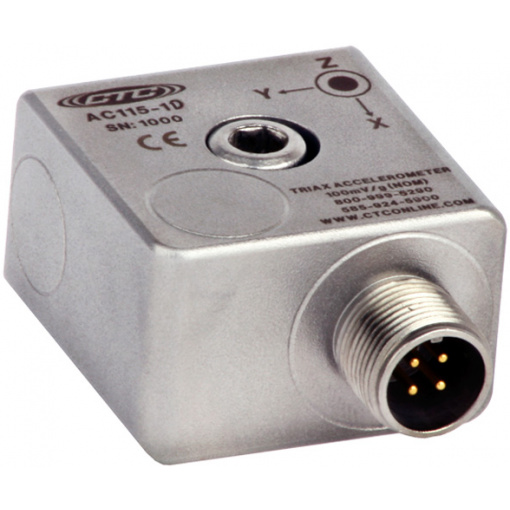

AC115 – Low Cost Triaxial Accelerometer, Connector / Cable, 100 mV/g

• Sensitivity: 100 mV/g
• Frequency Response (±3dB): 60-390,000 CPM
• Dynamic Range: ± 50 g, peak
• Power Requirements Voltage Source: 18-30 VDC
• Temperature Range: -58 to 250°F
  (-50 to 121°C)
• Case Material: 316L Stainless Steel
• Connector: 4 Pin J Connector
• Max Temp: 250°F
  (121°C)

Options

AC115-1D�
Low cost triaxial accelerometer, 100 mV/g, 4 pin connector;

AC115-2D
Low cost triaxial accelerometer, 100 mV/g; 4 conductor,integral black polyurethane jacketed cable,; 4 conductor, shielded, black polyurethane jacketed cable, shielded, .250″” OD; 0 ft. overall length;

AC115-3D
Low cost triaxial accelerometer, 100 mV/g, armor jacketed integral cable,; 4 conductor red Teflon® cable, stainless steel armor, .270″” OD, 400 F; 0 ft. overall length;
