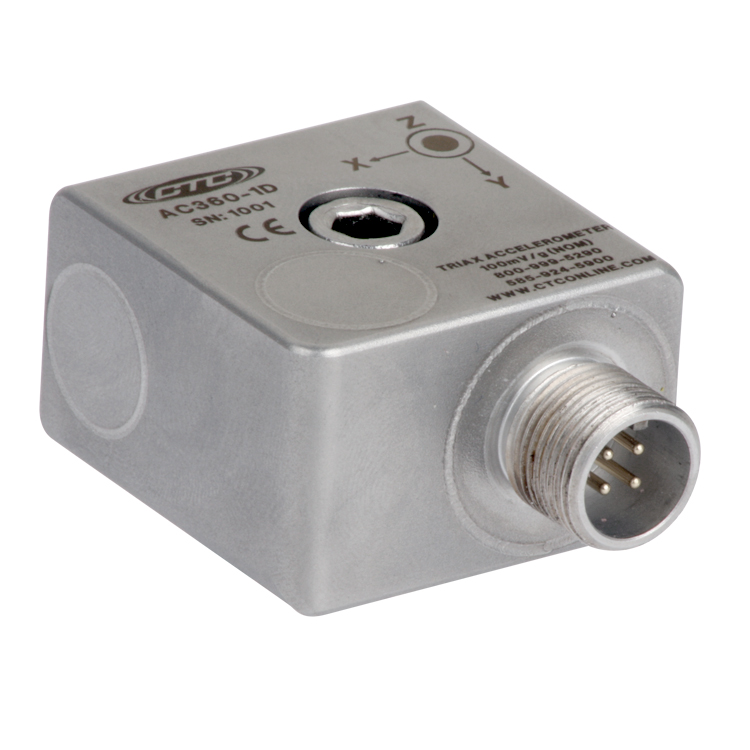

AC360 – Modal/ODS Triaxial Accelerometer, Connector / Cable, 100 mV/g

• Sensitivity: 100 mV/g
• Frequency Response (±3dB): 36-600,000 CPM
• Dynamic Range: ± 50 g, peak
• Power Requirements Voltage Source: 18-30 VDC
• Temperature Range: -65 to 250°F
  (-54 to 121°C)
• Case Material: 316L Stainless Steel
• Connector: 4 Pin J Connector
• Max Temp: 250°F (121°C)

AC360-1D�
High frequency triaxial accelerometer, 100 mV/g, 4 pin connector, for use in Modal.ODS analysis. Sensitivity +/- 5%.;

AC360-2D�
High frequency triaxial accelerometer, 100 mV/g, 4 pin connector, for use in Modal.ODS analysis. Sensitivity +/- 5%.; polyurethane integral cable

AC360-3D
High frequency triaxial accelerometer, 100 mV/g, 4 pin connector, for use in Modal.ODS analysis. Sensitivity +/- 5%.; armor jacketed integral cable
