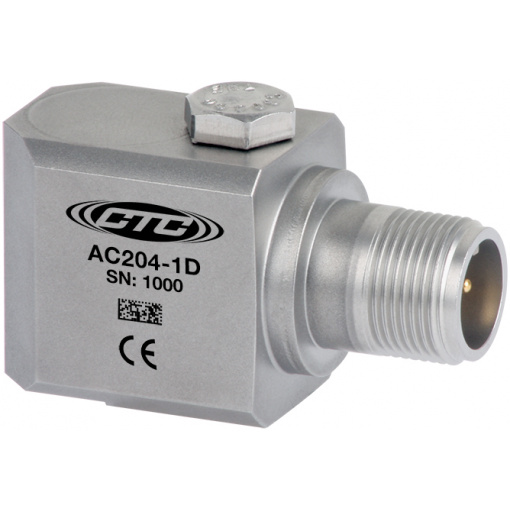

AC204 – Low Frequency Accelerometer, Side Exit Connector, 100 mV/g

• Sensitivity: 100 mV/g
• Frequency Response (±3dB): 6-480,000 CPM
• Dynamic Range: ± 80 g, peak
• Power Requirements Voltage Source: 18-30 VDC
• Temperature Range: -58 to 250°F
  (-50 to 121°C)
• Case Material: 316L Stainless Steel
• Connector: 2 Pin MIL-C-5015
• Max Temp: 250°F
  (121°C)

Options

AC204-1D�
Low frequency accelerometer, 100 mV/g, side exit connector

AC204-2D�
Low Frequency Accelerometer, 100 mV/g, Side Exit Integral Cable

AC204-3D�
Low frequency accelerometer, 100 mV/g, side exit connector with integral armor jacketed cable
