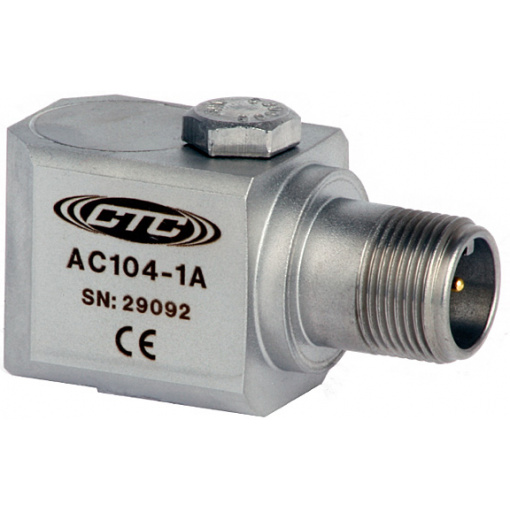

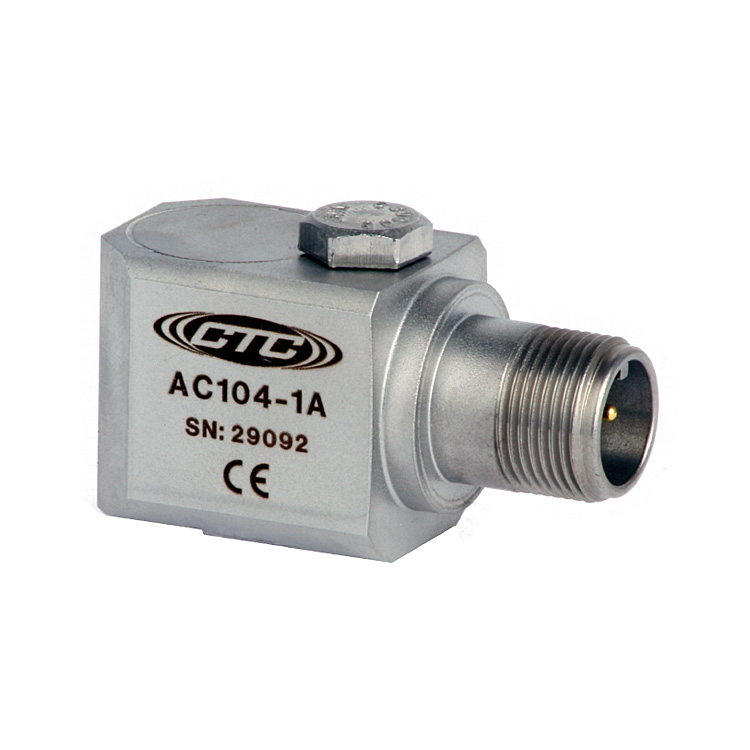

AC104 – Multi-Purpose Accelerometer, Side Exit Connector / Cable, 100 mV/g
- Sensitivity: 100 mV/g
- Frequency Response (±3dB): 30-600,000 CPM
- Dynamic Range: ± 50 g, peak
- Power Requirements Voltage Source: 18-30 VDC
- Temperature Range: -58 to 250°F
(-50 to 121°C) - Case Material: 316L Stainless Steel
- Connector: 2 Pin MIL-C-5015
- Max Temp: 250°F
(121°C)
