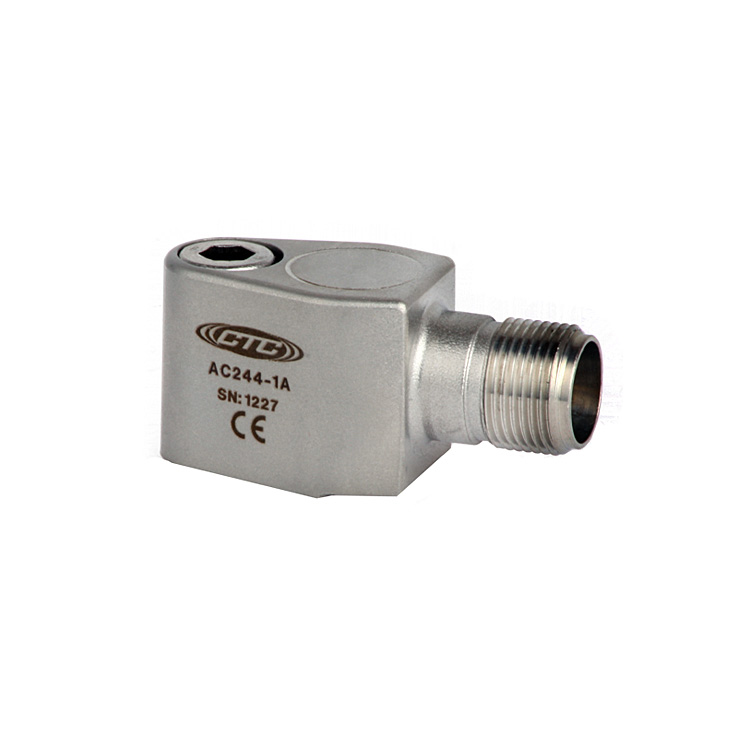

AC244 – Premium Series, mini-MIL Accelerometer, High Frequency, Side Exit Connector / Cable, 100 mV/g

• Sensitivity: 100 mV/g
• Frequency Response (±3dB): 36-900,000 CPM
• Dynamic Range: ± 50 g, peak
• Power Requirements Voltage Source: 18-30 VDC
• Temperature Range: -58 to 250°F
  (-50 to 121°C)
• Case Material: 316L Stainless Steel
• Connector: 2 Pin mini-MIL
• Max Temp: 250°F (121°C)

Options

AC244-1D�
Premium high frequency small accelerometer, 100 mV/g, +-5% sensitivity, mini-MIL side connector;

AC244-2D�
Premium Multipurpose Accelerometer, 100mV/g, +-5% sensitivity, side exit integral cable; Shielded Twisted Pair Cable, with Drain Wire, Light Weight Black Polyurethane Jacket; 0 ft. overall length;

AC244-3D�
Premium high frequency small accelerometer, 100 mV/g, +,- 5% sensitivity, side exit armor jacketed integral cable

AC244-6D
Premium high frequency small accelerometer, 100 mV/g, +,- 5% sensitivity, side exit armor jacketed integral cable
