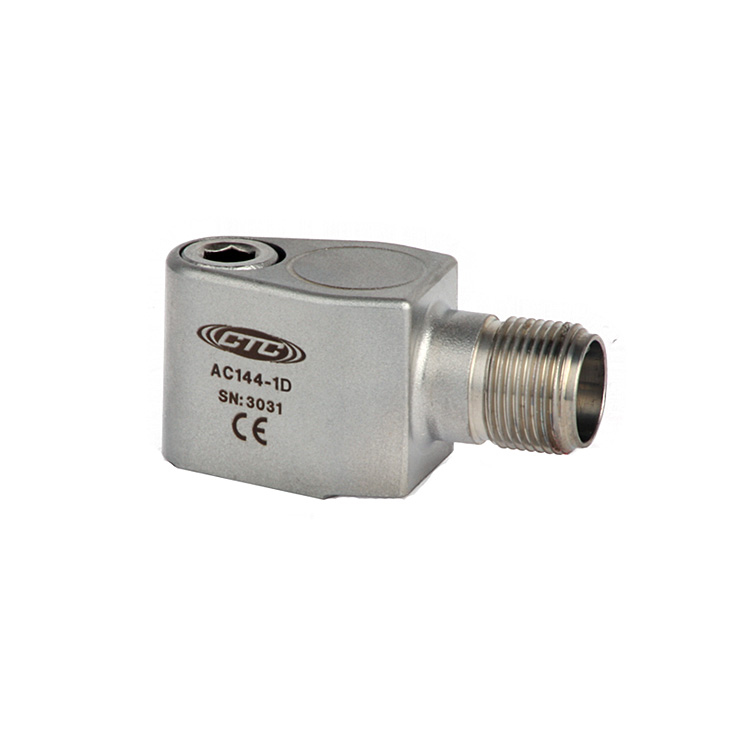

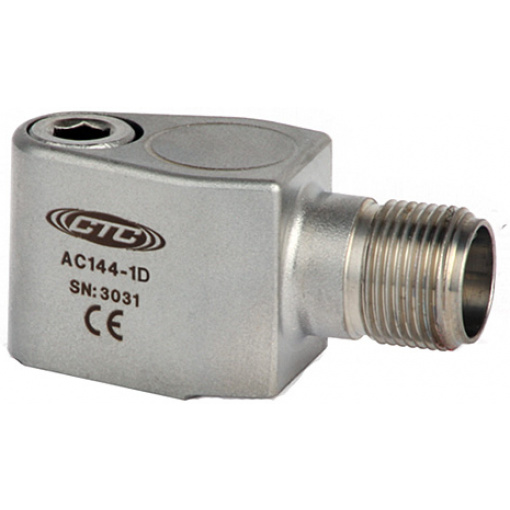

AC144 – Multi-Purpose mini-MIL Accelerometer, Side Exit Connector / Cable, 100 mV/g

• Sensitivity: 100 mV/g
• Frequency Response (±3dB): 36-600,000 CPM
• Dynamic Range: ± 50 g, peak
• Power Requirements Voltage Source: 18-30 VDC
• Temperature Range: -58 to 250°F
  (-50 to 121°C)
• Case Material: 316L Stainless Steel
• Connector: 2 Pin mini-MIL
• Max Temp: 250°F (121°C)

Options

AC144-1D�
Small accelerometer, 100 mV/g, mini-MIL side connector;

AC144-2D�
Multi-purpose mini-MIL accelerometer, 100 mV/g, side exit integral cable; Shielded, twisted pair cable with drain wire, lightweight black polyurethane jacket

AC144-3D�
Multi-purpose mini-MIL accelerometer, 100 mV/g, side exit armor jacketed integral cable; Twisted, shielded pair, stainless steel armor, red Teflon® cable, .270″ OD

AC144-6D
Multi-purpose mini-MIL accelerometer, 100 mV/g, side exit armor jacketed integral cable; Twisted, shielded pair, stainless steel armor, red Teflon® cable, .30″ OD

AC144-6N�
Multi-purpose mini-MIL accelerometer, 100 mV/g, side exit armor jacketed integral cable; Twisted, shielded pair, stainless steel armor, red Teflon® cable, .270″ OD
