AC224 – High Frequency mini-MIL Accelerometer, Side Exit Connector / Cable, 10 mV/g

• Sensitivity: 10 mV/g
• Frequency Response (±3dB): 60-900,000 CPM
• Dynamic Range: ± 500 g, peak
• Power Requirements Voltage Source: 18-30 VDC
• Temperature Range: -58 to 250°F
  (-50 to 121°C)
• Case Material: 316L Stainless Steel
• Connector: 2 Pin mini-MIL
• Max Temp: 250°F (121°C)

Options

AC224-1D�

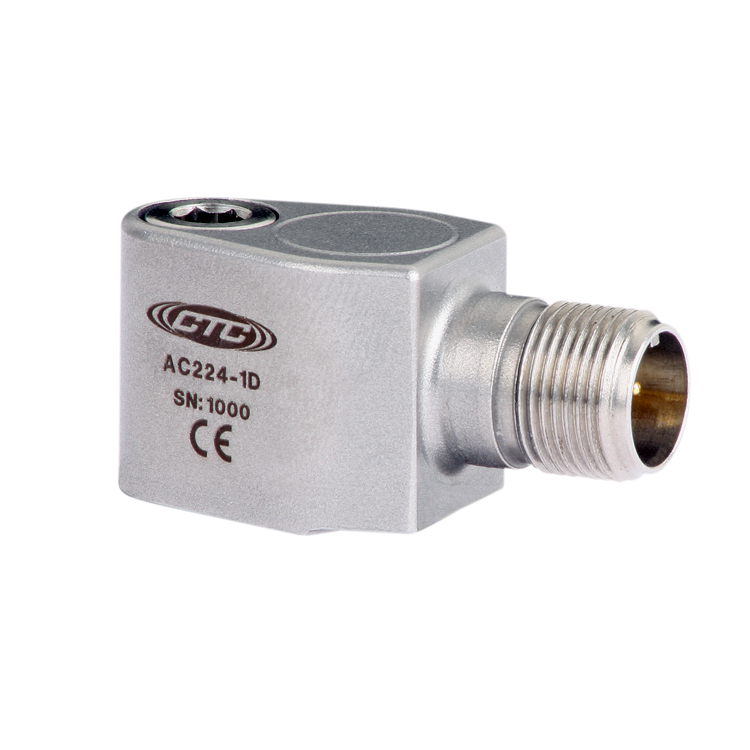

High frequency small accelerometer, 10 mV/g, mini-MIL side connector;

AC224-2D�
High frequency small accelerometer, 10 mV/g, side exit integral cable

AC224-3D�
High frequency small accelerometer, 10 mV/g, side exit armor jacketed integral cable
