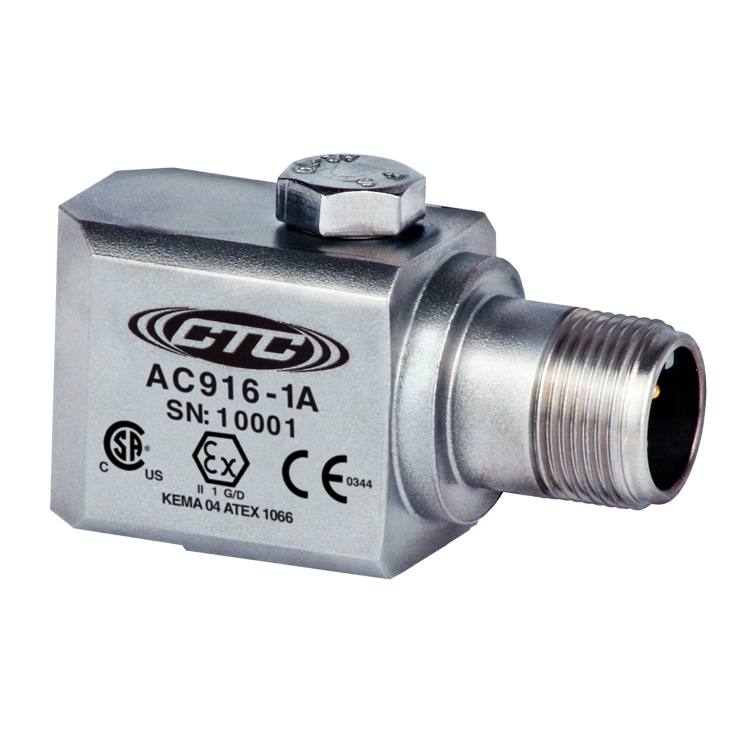

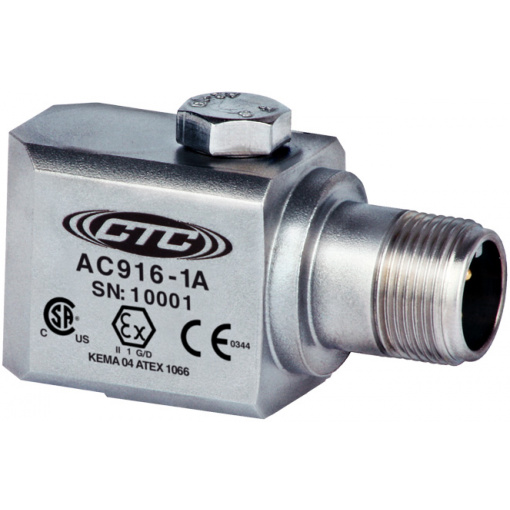

AC916 – Intrinsically Safe Accelerometer, Side Exit Connector / Cable, 100 mV/g Low Capacitance

• Sensitivity: 100 mV/g
• Frequency Response (±3dB): 30-516,000 CPM
• Dynamic Range: ± 50 g, peak
• Power Requirements Voltage Source: 18-28 VDC
• Temperature Range: -65 to 257°F
• Case Material: 316L Stainless Steel
• Connector: 2 Pin MIL-C-5015
• Max Temp: 125°C

Options

AC916-1A
Intrinsically safe accelerometer, low capacitance, 100 mV/g, side connector;

AC916-3C
Intrinsically safe accelerometer, low capacitance, 100 mV/g, side exit armor jacketed integral cable

AC916-9C�
Intrinsically safe accelerometer, 100 mV/g,side exit blue integral cable;
