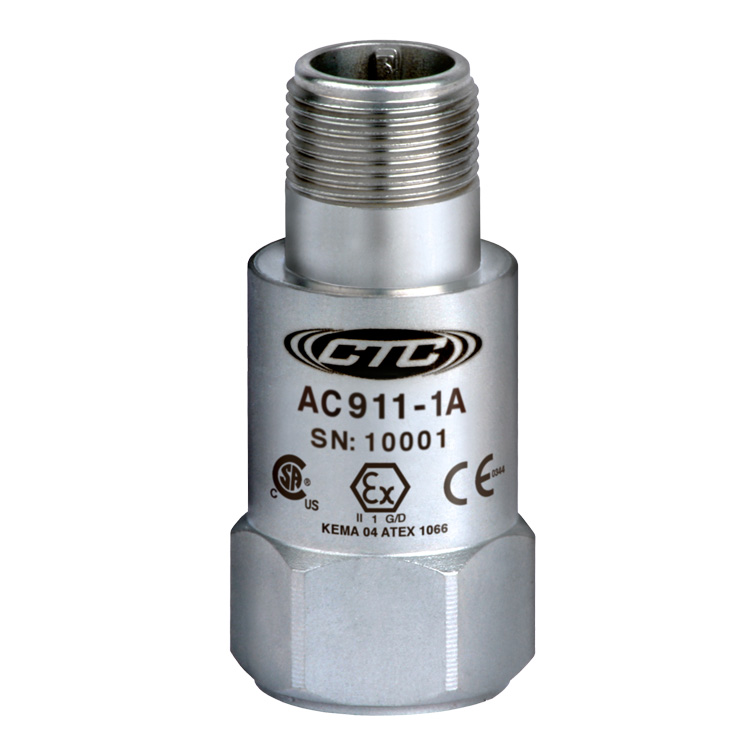

AC911 – Intrinsically Safe Accelerometer, Top Exit Connector / Cable, 10 mV/g Low Capacitance

• Sensitivity: 10 mV/g
• Frequency Response (±3dB): 60-900,000 CPM
• Dynamic Range: ± 500 g, peak
• Power Requirements Voltage Source: 18-28 VDC
• Temperature Range: -40 to 250°F
• Case Material: 316L Stainless Steel
• Connector: 2 Pin MIL-C-5015
• Max Temp: 125°C

Options

AC911-1A�
Intrinsically safe accelerometer, low capacitance, 10 mV/g, top connector.;

AC911-3C�
Intrinsically safe accelerometer, low capacitance, 10 mV/g, top exit armor jacketed integral cable

AC911-9C�
Intrinsically safe accelerometer, low capacitance, 10 mV/g, top exit blue polyurethane integral cable
