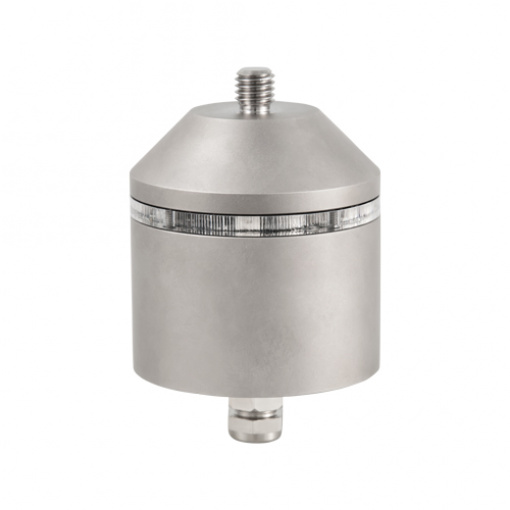

PCE-VS12 Vibration Sensor Switch
Setup via USB and PC / Includes software for detailed vibration analysis

PCE-VS12 is a vibration meter, analyzer or sensor condition monitoring switch used to measure RMS value, peak value and frequency domain (FFT) of vibration velocity or acceleration piezoelectrically. This IP67-rated vibration monitoring switch features an external USB port, 8-pin female connector 711 and programmable high pass and low pass filters.



– Ideal for machine condition monitoring and quality control applications
– Measures RMS and peak value of vibration velocity or acceleration
– Monitoring of frequency domain (FFT)
– Piezoelectric accelerometer
– IP67 ingress protection rating against water and dust
– Features an external USB port and 8-pin female connector 711
– Programmable high pass and low pass filters
– Emergency shut-off
– Setup via USB and PC
– Includes software for detailed vibration analysis







Measuring range	0.1 … 1000 m/s² acceleration Frequency dependent velocity 2 … 1000 or 20 … 10,000 Hz / 360 lines frequency domain
Monitoring values	Peak value of vibration acceleration or vibration velocity RMS value of vibration acceleration or vibration velocity Frequency domain (FFT)
High pass filter	0.1 / 2 / 5 / 10 / 20 / 50 / 100 / 200 / 500 / 1000 Hz acceleration 2 / 5 / 10 / 20 / 50 Hz velocity
Low pass filter	0.1 / 0.2 / 0.5 / 1 / 2 / 5 / 10 kHz acceleration 1 kHz velocity
FFT limits Relay output	10 freely selectable frequency intervals with limit amplitudes PhotoMOS relay SPST Max. 60 V / 0.5 A (AC/DC) Open/close programmable Connection via 8-pin female connector 711
Teach-in function Warning / alarm	Button for measuring the switching threshold No
Interfaces	USB 2.0 full speed for parameterization and measurement CDC mode / virtual COM port 8-pin female connector 711
External USB port Power supply voltage	Yes 5 … 30 V DC 5 V DC USB < 100 mA screw terminals
Ingress protection	IP67 rating
Operating temp. range	-40 … +80 °C / -40 … +176 °F
Approx. weight	125 g / 0.28 lb
Approx. dimensions	50 mm / 1.97″ Ø 36 mm / 1.42″ height
Mounting	M8 thread pin 8 mm / ≈ 0.32″ length 25 mm / ≈ 0.99″ Ø coupling surface
