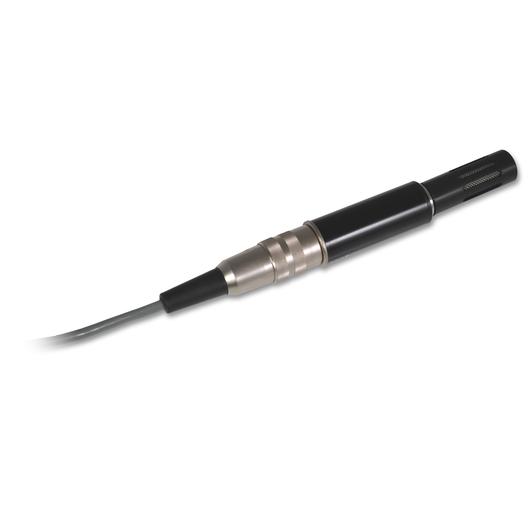

THP-W Temperature/Humidity Probe

หมวดหมู่: Sensor

รายละเอียดเพิ่มเติม
บทวิจารณ์ (0)

Description

The THP-W Temperature Humidity Probe is a self‐contained unit with a solid-state temperature/humidity sensor giving a linearized output of 10mV per °C and 10mV per %RH respectively. The unit operates from 5‐12 volts DC. Connection is via a standard circular stainless steel DIN connector. The mating connector with 8 ft. (2.4 m) cable is supplied. The probe operates within ± 0.4°C over a –40 to 120°C temperature range. The humidity output is accurate to ± 3% (typical) between 20 to 80%RH and ± 4% between 10 to 90%RH. The probe housing is made of rugged anodized aluminum with a plastic end cap. The sensor is housed under a water-resistant membrane. When used with the Monarch Instrument DataChart™ DC1250 Paperless Recorder, no additional power is required as power is provided directly from the rear terminals of the recorder.

Specifications*

Temperature

Parameter	Conditions	Typical	Max	Units
Range:		-20 to 100	-40 to 120	°C
�		-13 to 212	-40 to 248	°F
Accuracy:		±0.4	See Fig. 1	°C
�		±0.8		°F
Repeatability:		±0.1		°C
�		±0.2		°F
Output:		10		mV/°C
Offset:	0.5V = 0°C	0.50		VDC

Relative Humidity

Parameter	Conditions	Typical	Max	Units
Range:	0 to 100			%RH
Accuracy:	20 to 80	±3	See Fig 2.	%RH
�	10 to 90	±4	See Fig 2.	%RH
Repeatability:		±0.1		%RH
Response:		10		Sec
Output:		10		mV/%RH
Offset:		0		VDC
