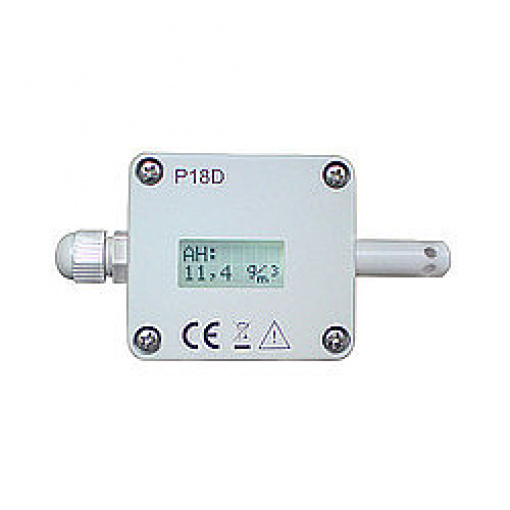

Temperature Sensor PCE-P18D

Measures temperature and humidity / output as standard signal / compact Modbus RTU interface / wall mounting / display

The temperature probe PCE-P18 is used in HVAC technology to monitor humidity and temperature. The measured values ​​are output as a standard signal by the humidity sensor PCE-P18. Air humidity and temperature are accurately determined in this compact humidity sensor via a semiconductor component. For commissioning, the PCE-P18 humidity probe is supplied with a DC voltage. The measured values ​​are output via a two-wire cable. All connections are made via screwed contacts in the waterproof IP 65 housing. In addition to the output of the measuring signal as a 0 … 10 V signal, the measured values ​​can be output via the RS485 interface. This function is useful if several monitoring points are to be linked to each other during your house surveillance.
