Pressure Sensor PCE-DMM 10

Name: Pressure Sensor PCE-DMM 10
SKU: 19793
Availability: BackOrder

PCE-DMM 10

Availability : กรุณาติดต่อสอบถาม

หมวดหมู่: Sensor

รายละเอียดเพิ่มเติม
บทวิจารณ์ (0)

Digital Pressure Sensor / Digital pressure to 250 bar / Relative pressure measurement/ Rotating display / Max-Min Function / Battery operation

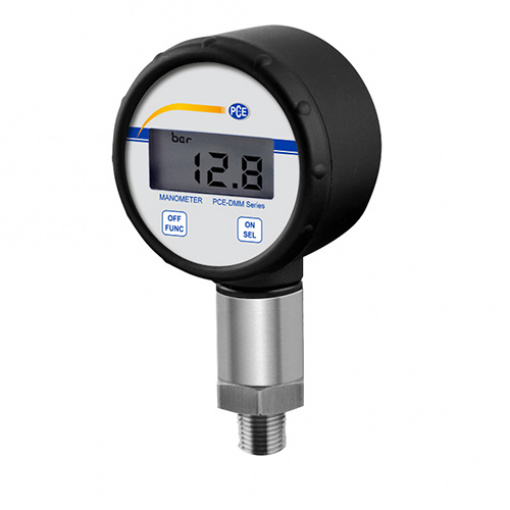

The compact pressure sensor PCE-DM 10 is characterized by its rotatable housing and the display and the battery supply. Thus, the pressure sensor PCE-DM 10 isideal for mobile applications, such as test beds. These values are displayed on the 4.5 digit display. The pressure sensor has a switching unit (bar, psi, Pa, MPa). In addition, the pressure sensor can store the maximum and minimum measured value. An automatic shutdown completes the range of functions of the PCE-DM 10.

– Up to 250 bar
– Relative pressure
– Swivel 4.5 digit display
– Max-Min function
– Various units
– Ceramic membrane

Nominal pressure in bar	1.6	2.5	4	6	10	16		25	40	60	100	160	250
Overpressure in bar	4	4	10	10	20	40		40	100	100	200	400	400
Burst pressure in bar	7	7	15	15	35	70		70	150	150	250	450	450
Vacuum resistance	Unlimited
General Specifications
Accuracy							<± 0.5% FSO
Measuring rate							1/s
Long term stability							<± 0.3% FSO
Temperature sensor							<± 0.5% FSO
Media							Fuel, oils gases
Temperature ranges							Measured substance: -25 … 85°C / -13 … 185°F Environment: 0 … 70°C / 32 … 158°F Storage: 0 … 70°C / 32 … 158°F
Pressure connection / sensor housing							Stainless steel 1.4301
Seals							FKM
Diaphragm							Ceramics AL₂O₃ 96%
Parts in contact with measurable media							Pressure port, seals, diaphragm
Display							4.5 digit LCD
Power supply							3V Lithium batteries (CR2450)
Battery life							ca. 1500h continuous operation
Protection							IP65
Process connection (selectable)							1/4″ DIN 3852 1/4″ NPT
