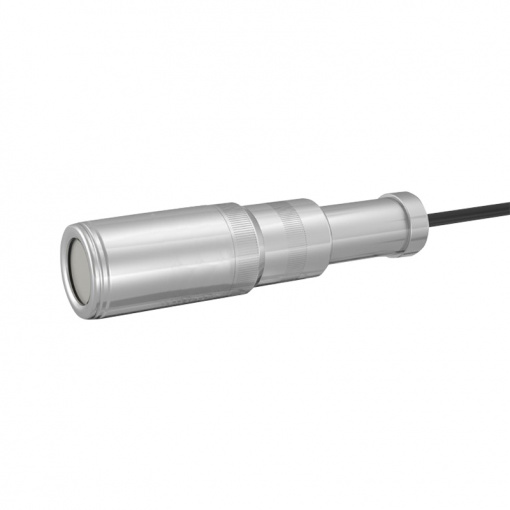

Pressure / Fill Level Sensor PCE-SLS 10

The level sensor is based on a ceramic measuring cell. This level sensor was developed for the measurement of levels in waste water, polluted and highly viscous media. As a special feature of this level sensor, the probe and cable part can be separated from one another. As a result, maintenance or assembly work on the sensor can be quickly replaced. The fill level sensor has a removable protective cap to protect the sensor membrane. Depending on the model, the measuring range of the level sensor extends from 0 … 40 cmH2O to 0 … 100 mH2O. The level sensor outputs the measured level as an analog signal. This signal can be processed by process displays, PLCs or data loggers.

– Nominal pressures up to 100 mH2O
– Accuracy ±0.35% of the measuring range
– 39.5 mm diameter
– Cable and probe can be separated
– Suitable for sewage, fuels and water
– Ceramic sensor
– Can be used for dirty and viscous media
– Different configurations possible
