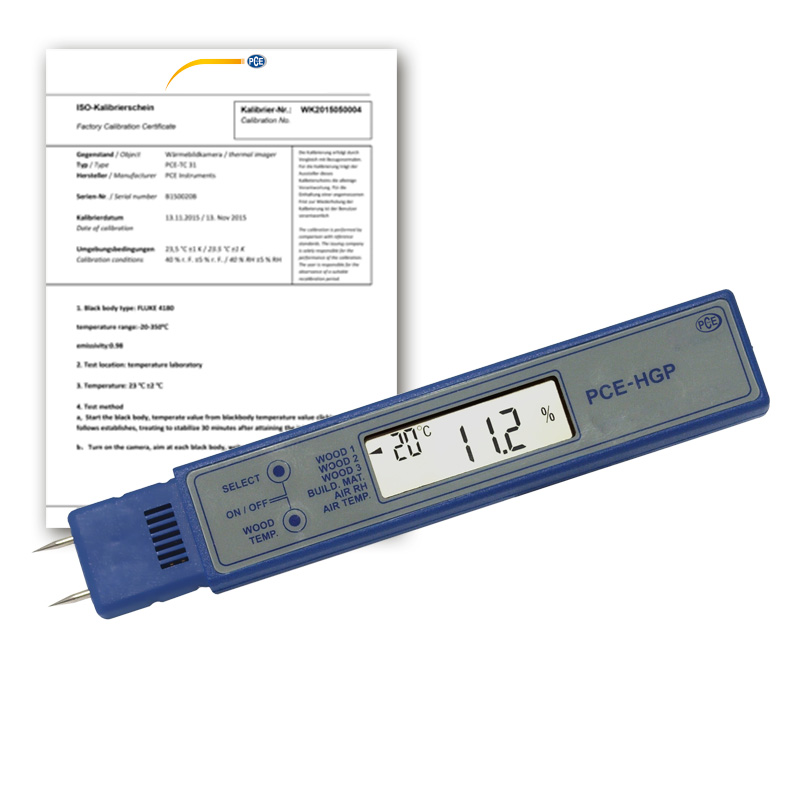

Multifunction Relative Humidity Meter PCE-HGP-ICA incl. ISO Calibration Cert.

Name: Multifunction Relative Humidity Meter PCE-HGP-ICA incl. ISO Calibration Cert.
SKU: 16754
Availability: BackOrder

PCE-HGP-ICA

Availability : กรุณาติดต่อสอบถาม

หมวดหมู่: Relative Humidity Meter

รายละเอียดเพิ่มเติม
บทวิจารณ์ (0)

Multifunction Relative HumidityMeterPCE-HGP-ICA incl. ISO Calibration Certificate

Uses penetrating pins to measure moisture content of wood and other materials /�Also measures air relative humidity (RH) and temperature and calculates dew point temperature

PCE-HGP is a multifunction relative humidity meter that uses penetrating pins to measure the moisture content of wood and other construction or building materials. PCE-HGP also measures the relative humidity (RH) and ambient temperature and calculates the dew point temperature of the air.

A table of exotic wood type coefficient values is provided in the user manual to allow for proper calculation. The table lists coefficient values for exotic wood types including but not limited to Gonzales Alves, Pine, Brazilian-Rosewood, Chipboard, Cedar, Dogwood, European Aspen, Elm, Oak, Juniper, Maple, Ash, Quebracho Blanco and Colorado, Sandalwood, Mahagony, Olive, Umbrella, Pear, Persimmon, African Walnut, Teak, Willow and more.

– Penetrating pins measure moisture content of wood and other construction or building materials
– Measures 3 wood groups (12 types + 270 exotic types)
– Also measures air humidity (RH) and ambient temperature and calculates dew point temperature
– Compact, lightweight, pocket-sized hygropen
– High accuracy
– Temperature compensation
– Ideal for use in situ
– User friendly
– Capacitance and resistance sensor types
– Low power indicator and auto-off power-saving function after 5 minutes of inactivity
– incl. ISO Calibration Certificate

Technical Specification
Measurement of relative humidity and temperature via an internal combination sensor
Measuring range	0 … 100 % r.H. / – 5 … + 50 °C / 23 … 122ºF
Resolution	0.5 % r.H. / 0.5 °C
Accuracy	±2 % r.H. (between 30 and 80 %) else ±3 % r.H. / ±1 °C
Measurement of material moisture (building materials) via penetrating needles
Measuring range	0 … 60 % (absolute)
Resolution	0.1 %
Accuracy	±1 % (<15 %) / ±2 % (between 15 and 28 %) above ±3 %
Material characteristics	an averaged material characteristic
Measurement of material moisture (wood) viapenetrating needles
Measuring range	6 … 60 % (absolute)
Resolution	0.1 %
Accuracy	±1 % (<15 %) / ±2 % (between 15 and 28 %) above ±3 %
Material characteristics / wood groups	three different wood groups selectable
