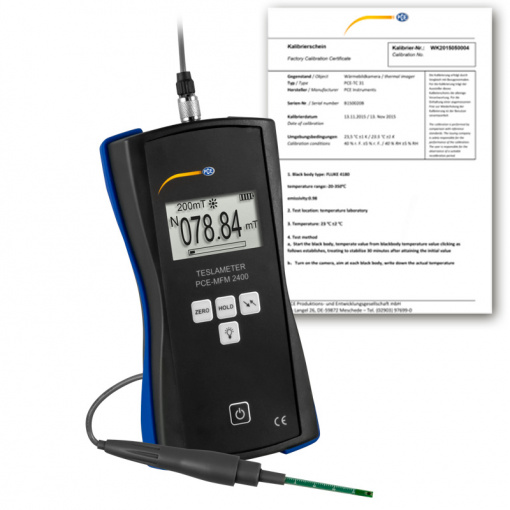

Electromagnetic Radiation Detector PCE-MFM 2400-ICA incl. ISO Calibration Cert.

Name: Electromagnetic Radiation Detector PCE-MFM 2400-ICA incl. ISO Calibration Cert.
SKU: 16608
Availability: BackOrder

PCE-MFM 2400-ICA

Availability : กรุณาติดต่อสอบถาม

หมวดหมู่: Radiation Detector

รายละเอียดเพิ่มเติม
บทวิจารณ์ (0)

Precise Electromagnetic Radiation Detector with an accuracy of 1% /�

automatic switch-off / transverse measurement / backlight /

Tesla and Gauss measurement / for static magnetic fields

With a measuring range of 2,400 mT, theelectromagnetic radiation detectorcovers a wide range of measuring tasks. The field strength meter has an accuracy of 1%. This makes the Electromagnetic Radiation Detector a very precise measuring device. For example, the Electromagnetic Radiation Detector can be used to test relays and permanent magnets for the existing magnetic field. The Electromagnetic Radiation Detector is therefore used in production processes or in quality control.

With the backlight on the Electromagnetic Radiation Detector, the measured values are always easy to read even in poor lighting. Thanks to the automatic switch-off function, the Electromagnetic Radiation Detector automatically switches itself off after 5 minutes. This ensures that the battery of the Gauss meter does not discharge completely.

– very precise measurement technology�

– measuring range up to 24,000 G and 2,400 mT

– transverse sensor

– for measuring static magnetic fields

– automatic shutdown

– incl. ISO Calibration Certificate

Measuring range	0… 200 mT
	200… 2,400 mT
	0 … 2,000 G
	2,000 … 24,000 G

Accuracy	± 1% of reading

Resolution	0.01 mT
	0.1 g

Measuring direction	transversal
Magnetic field	static (DC)
Unit	mT, G
Power supply	1 x 9 V block battery
Automatic shutdown �	Automatic shutdown after 5 minutes in idle status
Modes	Hold mode, measurement mode
Display	Backlight digital 4-digit value display
Operating temperature	32 … 122 ° F, 0… +50 ° C
storage temperature	-4 … 122 ° F, -20… +50 ° C
Dimensions	7.28 x 3.82 x 1.57 inch; 185 x 97 x 40 mm
Weight	0.68 lb, 310 g
sensor	Hall sensor transversal, cable length approx. 3.28 ft., 1 m
