Electromagnetic Field Radiation Detector PCE-G28-ICA incl. ISO Calibration Cert.

Name: Electromagnetic Field Radiation Detector PCE-G28-ICA incl. ISO Calibration Cert.
SKU: 16604
Availability: BackOrder

PCE-G28-ICA

Availability : กรุณาติดต่อสอบถาม

หมวดหมู่: Radiation Detector

รายละเอียดเพิ่มเติม
บทวิจารณ์ (0)

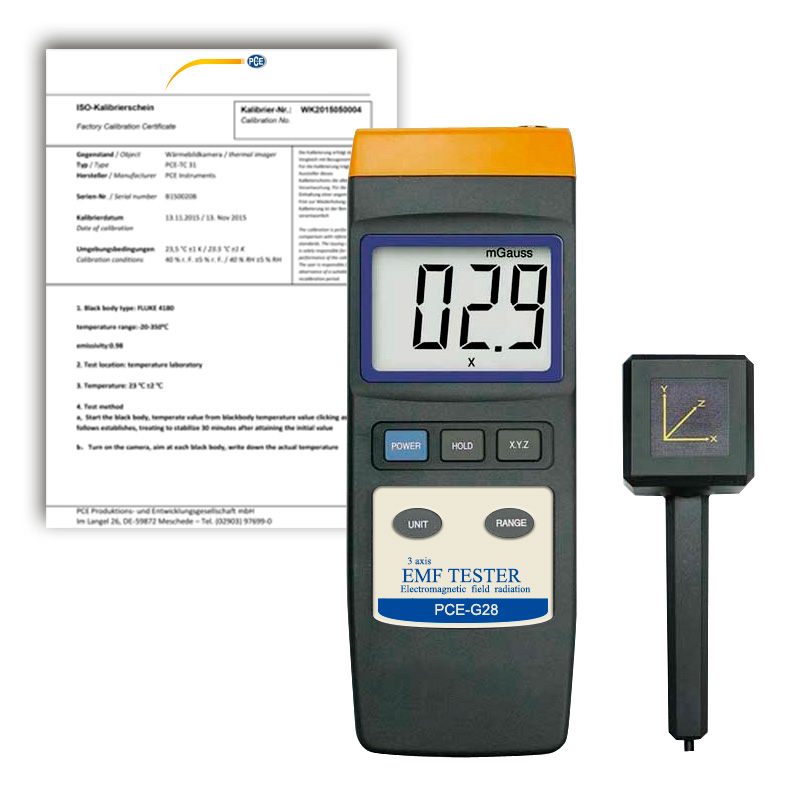

PCE-G28-ICA is a portable, handheld electromagnetic field radiation detector that detects electromagnetic fields (EMFs) and displays measurement results in milliGauss (mG) or microTesla (µT). This EMF radiation detector comes with an external 3-axis electromagnetic sensor (X, Y, Z direction).

– Measurement range: 0 … 20000 mG / 0 … 2000 µT
– Accuracy: ± 4% + 3 digits / ± 5% + 3 digits / ± 10% + 5 digits
– Resolution: 0.1 mG / 0.01 µT
– Detects electromagnetic fields (EMFs) on three axes (X, Y, Z direction)
– Displays measurement results in milliGauss (mG) or microTesla (µT)
– Comes with an external 3-axis electromagnetic sensor
– Data hold functionality
– Ideal tool for checking transformers and measuring EMFs generated by power lines, computer monitors, electric motors and installations
– Meets IEC 801-1 (EN 50081-1) / IEC 204 (EN 60204) standards
– Measures EMFs through casings, coverings and housings, eliminating the need to dismantle parts for inspection
– incl. ISO Calibration Certificate

Technical specifications
Measurement range	microTesla: 0 to 20 µT / 0 to 200 µT / 0 to 2000 µT milliGauss: 0 to 200 mG / 0 to 2000 mG / 0 to 20000 mG
Resolution (per range)	0.01 µT / 0.1 µT / 1 µT 0.1 mG / 1 mG / 10 mG
Accuracy	±4 % + 3 digits (in range 20 µT and 200 mG)* ±5 % + 3 digits (in range 200 µT and 2000 mG)* ±10 % + 5 digits (in range 2000 µT and 20000 mG)* *Refers to 50 – 60 Hz y < 3 V/m (RF)
Sampling rate	Approx. 0.4 second
Frequency	30 … 300 Hz
Display	LCD, 3.5 digits
Power	1 x 9V battery
Dimensions	Meter: 200 x 68 x 30 mm / 7.88 x 2.68 x 1.18 in Sensor: 225 x 75 x 55 mm / 8.86 x 2.95 x 2.17 in
Weight	470 g / 1.04 lbs (including battery)
