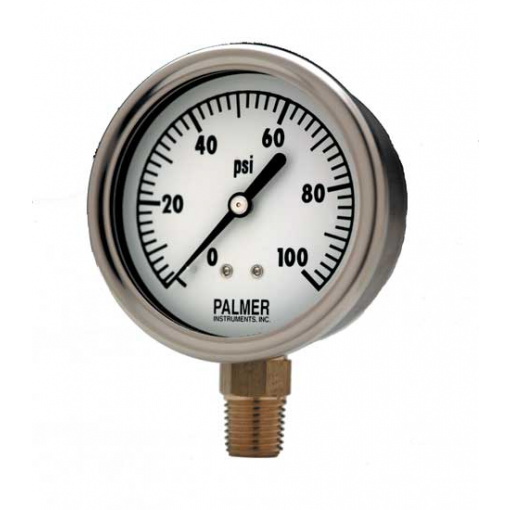

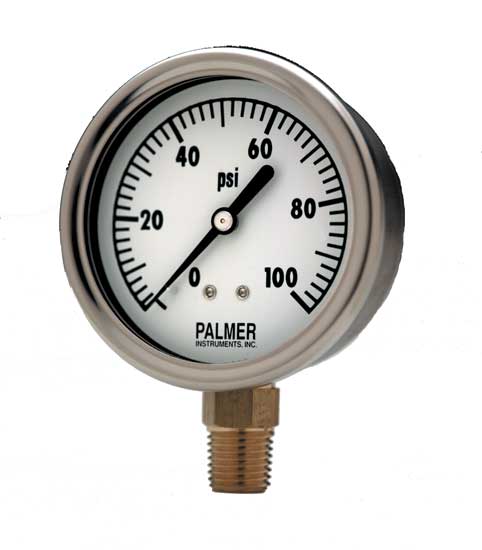

1 – 1/2″ Stainless Steel Case Utility Gauges Model Number 15CB

Case is AISI 304 Stainless Steel. 1 – 1/2″ (40mm), available either filled or dry. Bezel is AISI 304 Polished Stainless Steel, crimped onto case. Window is Glass or Engineered Plastic on 1-1/2″. Socket is brass. Movement is OT59 Brass Gears with 304 Stainless Steel plates. Bourdon Tube is brass or phosphor bronze. Pointer is black painted aluminum, non-adjustable. White Aluminum dial with black markings. Markings and graduations in accordance with ASME B40.1-1998. Accuracy is ±3.2.3% for 1 – 1/2″ gauges. Many Range Availabilities. Additional options are available. Contact Customer Service for assistance regarding options and ordering.
