Pressure Gauge PCE-P01-ICA Incl. ISO Calibration Certificate

Name: Pressure Gauge PCE-P01-ICA Incl. ISO Calibration Certificate
SKU: 16280
Availability: BackOrder

PCE-P01-ICA

Availability : กรุณาติดต่อสอบถาม

หมวดหมู่: Pressure Gauge

รายละเอียดเพิ่มเติม
บทวิจารณ์ (0)

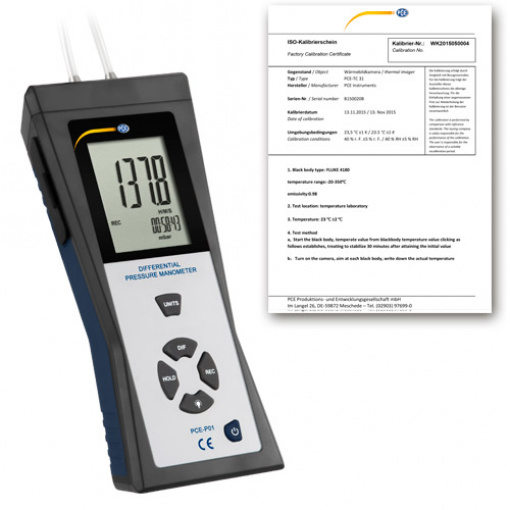

Differential Pressure�Gauge PCE-P01-ICA incl. ISO Calibration Certificate
Differential manometer for the measuring range from -140 to +140 mbar, including software

The differential pressure gauge PCE-P01 is a robust, compact and comprehensive differential pressure gauge for measuring pressure in 11 adjustable units. The PCE-P01 is particularly suitable for the complete documentation of your measuring tasks. The minimum, maximum and average values of your measurement can be viewed in parallel to the current measured value on the large display of the PCE-P01 differential meter. For example, if you want to determine and document pressure fluctuations, you can use the enclosed software, with the help of which it is possible, for example, to transfer the measured values to the computer every second and display them graphically and in tabular form.

– Easiest operation
– Measurement of differential pressure and static pressure in 11 selectable units: mbar, bar, psi, kPa, …
– Measuring range from -140 to +140 mbar
– Min / max and average value display
– “Hold” function
– Backlight can be switched on / off
– For long-term measurements including power supply
– Software with USB cable included
– Battery level indicator
– Auto-off function that can be switched off
– Zero point adjustment possible at any time
– incl. ISO Calibration Certificate

Measuring range� (±) inH2O� psi� mbar� kPa� inHg� mmHg� ozin²� ftH2O� cmH2O� kgcm²� bar	55.40� 2.000� 137.8� 13.79� 4.072� 103.4� 32.00� 4.612� 140.6� 0.140� 0.137
Resolution � inH2O� psi� mbar� kPa� inHg� mmHg� ozin²� ftH2O� cmH2O� kgcm²� bar	0.01� 0.001� 0.1� 0.01� 0.001� 0.1� 0.01� 0.001� 0.1� 0.001� 0.001
Accuracy (at +25 °C / +77 °F)	± 0.3% of measuring range
Linearity	± 0.2%
Response time	Approx. 0.5 sec.
Max. pressure	689 mbar
Operating temperature	0 … 50°C / 32 … 122°F
Storage temperature	-10 … 60°C / 14 … 140°F
Media	Air and non-explosive gases
Real-time data-logging interval �	1 sec. to 24 h adjustable
Display	Dual LCD
Dimensions	210 x 75 x 50 mm / 8.27 x 2.95 x 1.97 in (H x W x D)
Weight (without batteries)	650 g / 1.44 lbs
Power supply	Battery: 1 x 9V block� AC adapter: 9V DC / 500-mA�
