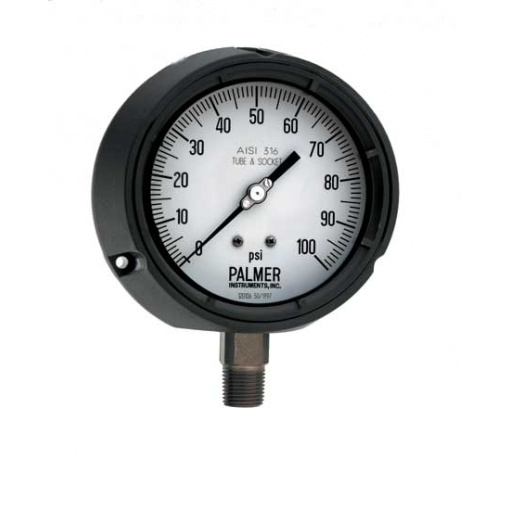

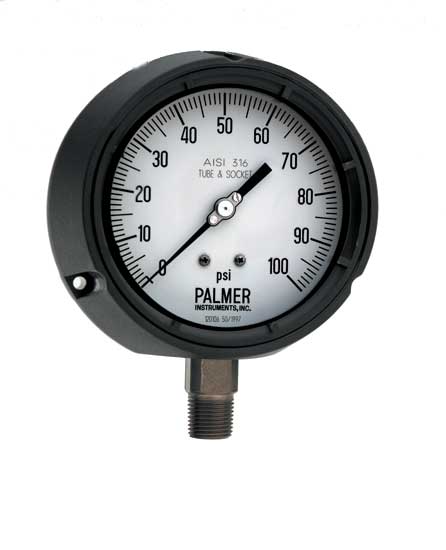

4.5″ Solid Front Blow-Out Back Industrial Pressure Gauge Model Number 45TS

Accurate, Tough, and Adjustable, Palmer Process Gauges are designed to provide the maximum safety for personnel monitoring the gauges in the event of gauge failure, and to resist the most severe operating conditions created by the ambient environment and the process medium. These gauges are constructed with a solid barrier between the sensing element and the dial front, welded to the socket giving it exceptional strength. In addition to protecting the user from fluid and particles in the event of failure, the backs of these cases are designed to blow out to release pressure inside the case. The 45TS has a safety construction featuring a stainless steel “solid front” safety cell protecting the front and sides, and a blow out back.. Case and Blow-Out Disk are Polyammide, Fiberglass Reinforced in 4 – 1/2″ (125 mm). Available either filled or dry. Ring is 4 – 1/2″ Polypropylene, Fiberglass reinforced. Plexiglass is standard, Safety Glass optional. Socket: AISI 316L Stainless Steel, TIG welded to the elastic element using 316 Stainless Steel. Optional K Monel. Bourdon Tube: All Pressure Sensing Elements are made from AISI 316L Stainless Steel. C-tube configuration is used for ranges below 1000 PSI. Spiral tube configuration for higher ranges. Optional K Monel. Connections are 1/2″ NPT threads with built in Stainless Steel Restrictor; 1/4″ NPT optional. Movement is reinforced Stainless Steel with Internal Limit Stops to prevent damage in the event of inadvertent over-range and under-range. Pointer is balanced black aluminum, micrometer adjustable. Dial is white aluminum with black markings. Markings and graduations in accordance with ASME B40. 1-1998. Process Fluid Temperatures: 212°F (100°C) maximum for standard tube and socket materials, 450°F (230°C) maximum for optional K Monel dry gauge. Accuracy is 0.5% of full scale Dry, or 1.0% Filled. Overpressure Limits vary; see catalog page 11. Overpressures in excess of these values may result in a calibration shift but will not damage the movement due to the built in stops. Temperature Errors for a normal temperature of 68°F (20°C) approximately +0.3% error for a temperature increase of 18°F and -0.3% error for a temperature decrease of 18°F (10°C). Many Ranges Available. Additional Options are available. For Option availability and ordering please contact Customer Service.
