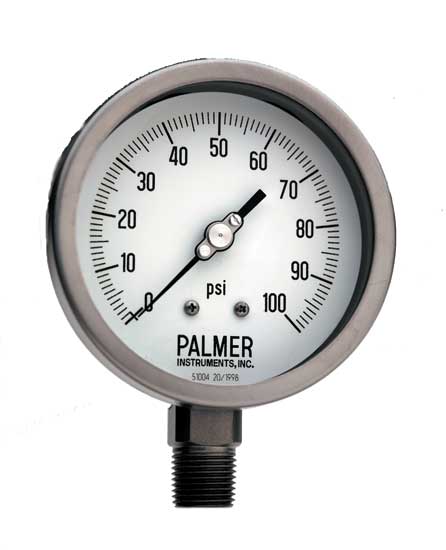

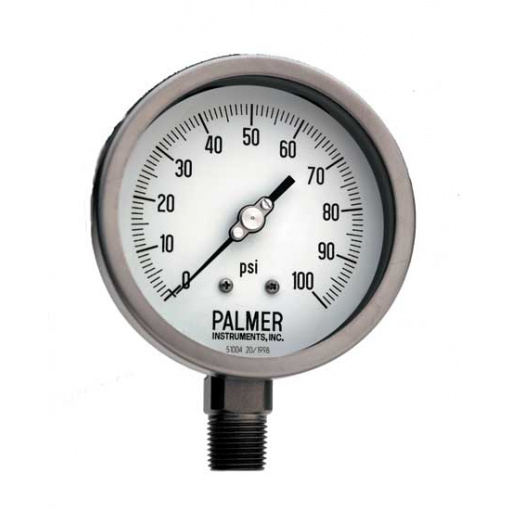

6″ All Stainless Steel Industrial Pressure Gauges Model Number 60SS

6″ All Stainless Steel Gauges have Built-In Over-Range and Under-Range Protection. Welded Socket to Case. Reinforced Sector Improves Accuracy Over Life of Gauge. Gauges Come with Removable Stainless Steel Restrictor. Case is 6″ (150mm), Filled or Dry. Ring is AISI 304 Polished Stainless Steel, Bayonet Connection. Window is Instrument glass. Safety glass and Acrylic optional. Socket is AISI 316 Stainless Steel, TIG welded to the elastic element using 316 Stainless Steel. K Monel optional. High Range 6″ Gauges come with removable Stainless Steel Restrictor. Bourdon Tube: 6″ Gauges less than 1000 PSI range use a C-tube configuration. All other gauges use a spiral tube. K Monel optional. Movement is Reinforced Stainless. Pointer is balanced black aluminum. Micrometer adjustable. Dial is white aluminum with black markings. Markings and graduations in accordance with ASME B40.1-1998. Process Fluid Temperatures: 212°F (100°C) maximum for standard tube and socket materials, 450°F (230°C) maximum for optional K Monel dry gauge. Overpressure Limits: As a percent of full scale value. 30% for ranges up to 870 PSI (60 Bar). 25% for ranges from 870 to 1400 PSI (100 Bar). 15% for ranges above 1400 PSI (100 Bar). Overpressure in excess of these values may affect calibration but will not damage the movement due to the mechanical stops. Options available. Contact Customer Service for Options Available and Ordering.
