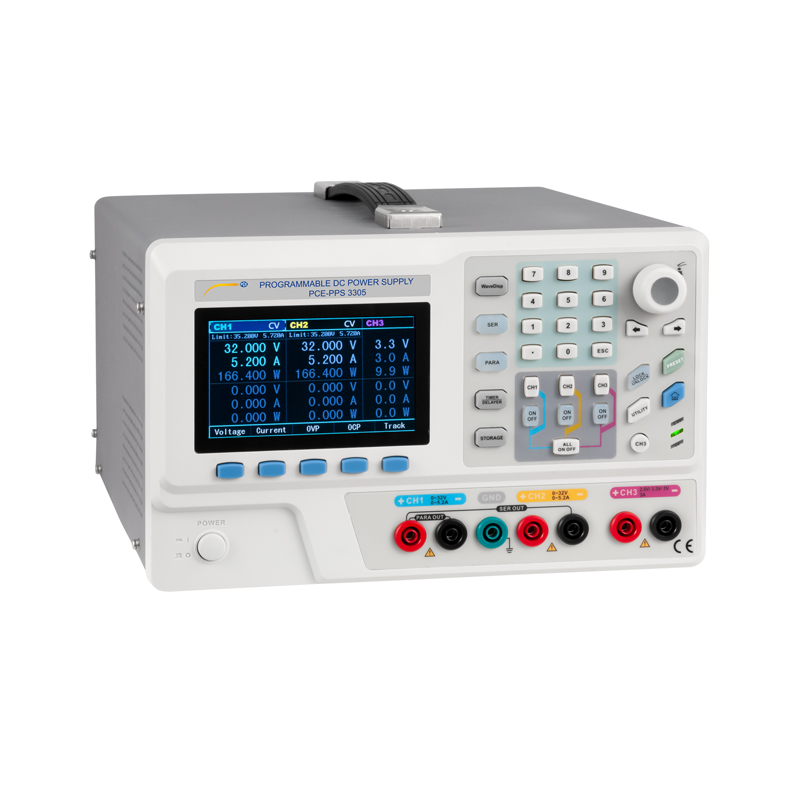

Programmable Power Supply PCE-PPS 3305

The Programmable Power Supply can be connected to the supplied software and operated completely from a remote workstation. The connection to the programmable power supply can be established either via the USB or via the Ethernet interface. This means that the programmable power supply can be freely positioned in a building. In addition, entire voltage and current profiles can be stored. This means that the programmable power supply can also be used in a company’s development department.

In addition to the normal output mode for the programmable power supply, the controllable outputs can be combined into one output.Thanks to this function, the controllable outputs for the programmable power supply can be combined in parallel or in series at the push of a button. As a result, the operator does not need any further connection cables in the programmable power supply unit in order to generate a double current or a double voltage. The layout of the display on the programmable power supply can also be switched by pressing a button, which gives the operator a different overview of the parameters.

– Connection via LAN and USB

– Switchable to parallel and series connection

– Programmable current and voltage profiles

– fully controllable with the software

– With 3 levels of fixed voltage regulator

– 2 stepless voltage outputs

– Target and actual display for a better overview

– different display layouts
