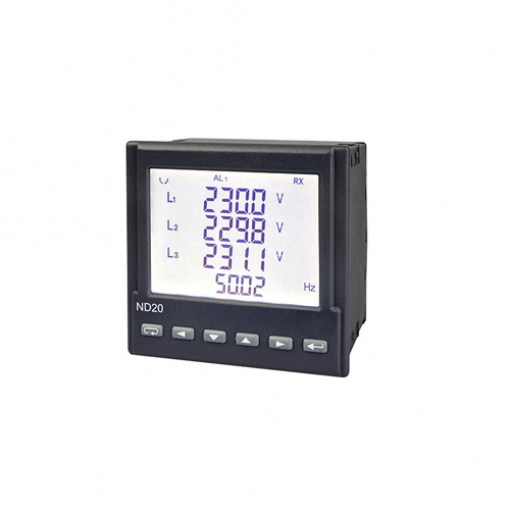

Power Meter PCE-ND20

The PCE-ND20 built-in power meter measures 3-phase all network parameters. Power, voltage, and power measurements are no problem for the PCE-ND20 built-in power meter. The current measurement can be done with the built-in power measuring device 3-phase and directly. However, it is also possible to measure high currents by means of transducers using the built-in power meter PCE-ND20. The voltage measurement takes place directly up to 480 V (phase to phase). The PCE-ND20 built-in power meter is only suitable for operation in 3-phase networks. All measured parameters are shown by the PCE-ND20 built-in power meter on the large, illuminated display. The user can scroll through the parameters via the front-panel keys and make all relevant settings for measurements with the built-in power meter. The voltage supply to the display is via a separate connection of the power indicator. The PCE-ND20 built-in power meter has an alarm relay which can be set freely by the user. In addition, the power meter has an analog, programmable 4 … 20-mA output. Via the Modbus RTU interface, all measured parameters can be integrated into the Modbus network by the power meter. The installed pulse output can be used to connect the PCE-ND20 built-in power meter to a separate energy meter / current meter. The front of the PCE-ND20 built-in power meter is protected to IP67. The PCE-ND20 built-in power meter is installed in switchboards. The cut-out is 92 x 92 mm / 3.6 x 3.6 in. The dimensions of the front of the built-in power meter are 96 x 96 mm / 3.8 x 3.8 in.

– Panel panel cutout 92 x 92 mm / 3.6 x 3.6 in
– Measurement of U, I, F, P, Q, S, PF …
– Supply via measuring voltage
– Alarm function
– Detection of wrong phase sequence
– Impulse output of the active energy
– Separate power supply
– IP 65 on the front
– Illuminated 3.5″ LCD display
– Easy installation
– RS485 Modbus interface

Measured parameter / Display area / Measuring range / Accuracy
1 A (Electricity in) / 0.00 … 1500 A / 0.005 … 1.2 A AC / ± 0.2% of the measuring range
5 A (Electricity in) / 0.00 … 60000 A / 0.025 … 6 A AC / ± 0.2% of the measuring range
57.7 V (Voltage LN) / 0.0 … 1.012 MV / 195 … 253 V AC / ± 0.2% of reading
230 V (Voltage LN) / 0.0 … 1.200 MV / 246 … 300V AC / ± 0.2% of reading
100 V (Voltage LL) / 0.0 … 1.752 MV / 340 … 440 V / ± 0.5% of reading
400 V (Voltage LL) / 0.0 … 2,000 MV / 425 … 520 V / ± 0.5% of reading
Frequency / 47.0 … 63.0 Hz / 47.0 … 63.0 Hz / ± 0.2% of reading
Wealth / -9999 … 9999 MW / -1.52 kW … 1.52 kW / ± 0.5% of the measuring range
Reactive power / -9999 … 9999 Mvar / -1.52 … 1.52 Mvar / ± 0.5% of the measuring range
Apparent power / 0.00 VA … 9999 MVA / 1.0 VA … 1.52 VA / ± 0.5% of the measuring range
Power factor PF / -1 … 1 / – 1 … 1 / ± 1% of the measuring range
Tan φ / -1.2 … 1.2 / -1.2 … 1.2 / ± 1% of the measuring range
Cos φ / -1 … 1 / -1 … 1 / ± 1% of the measuring range
Φ / -180 … 180 ° / – 180 … 180 ° / ± 0.5% of the measuring range
Energy absorbed and delivered / 0 … 99.999.999 kWh / N/A / ± 0.5 v. Measuring range
THD / 0 … 100% / N/A / ± 5% of the measuring range

General specifications
Relay output: 1 output, max. 250V AC / 0.5 A
Analog output: 1 programmable output, 0/4 … 40-mA
Pulse output: O / C (NPN), class A according to EN62053-31, voltage = 18 … 27V, current = 10 … 27-mA
RS485 interface: Modbus RTU RTU 8N2 / 8E1 / 8 O1 / (n1), Baud rate 4800/9600/19200/38400 bit / s
Display: Monochrome 3.5″ LCD, illuminated
Power supply (selectable): 20 … 40V AC / 20 … 60V DC, 85 … 253V AC / 90 … 300V DC
Environmental conditions: -20 … 55°C / -4 … 131°F, 25 to 95% RH
Storage conditions: – 30 … 70°C / -22 … 158°F, non-condensing
Standard: EN 61010-1
Dimensions: 96 x 96 x 77 mm / 3.8 x 3.8 x 3 in
Control panel cutout: 92 x 92 mm / 3.6 x 3.6 in
Weight: Approx. 300 g / < 1 lb
Protection rating: IP 65
