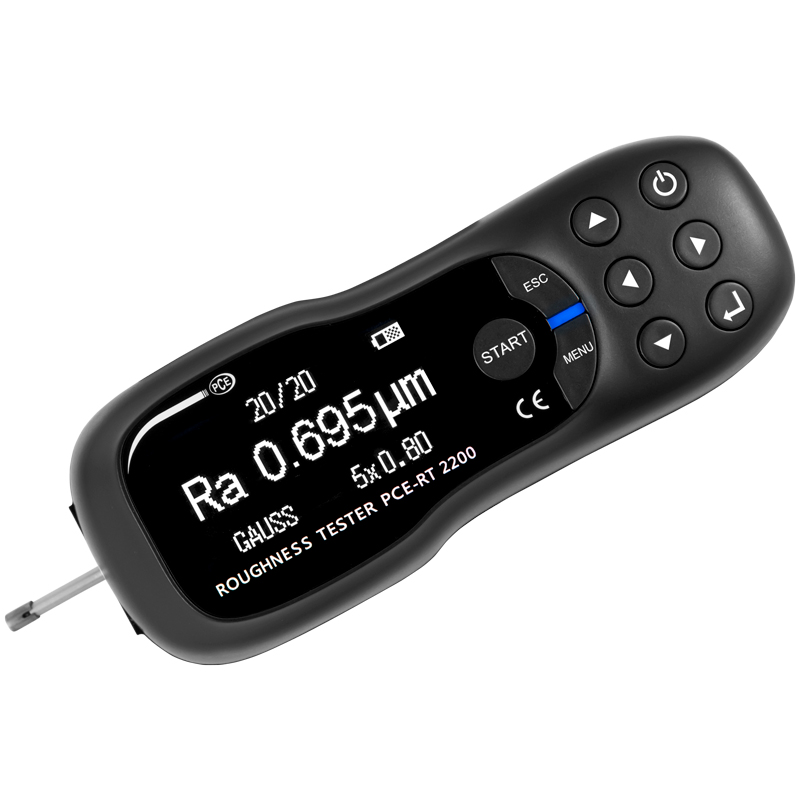

Paint Roughness Tester PCE-RT 2200BT

With this portable Bluetooth roughness tester, you can quickly and precisely measure the roughness of a wide variety of surfaces. To do this, the roughness meter with Bluetooth is placed on the surface to be tested. With the positioning device, the roughness meter can be aligned on a wide variety of surfaces. A measurement with the Bluetooth roughness meter can be carried out at the touch of a button. After the measurement has been carried out, the measured value is shown to the operator on the display of the Bluetooth roughness meter. A progress diagram of the surface is also shown on the display.

When measuring the surface roughness, there are various measurement parameters that provide information about the roughness of the surface, for example the maximum roughness depth, the mean roughness depth and many other measurement parameters. After a measurement has been carried out, these can be displayed in the data memory of the Bluetooth roughness meter.

After each measurement of the roughness, the recorded measured values ​​are saved in the roughness meter with Bluetooth. Up to 20 measurement sequences can be saved with the Bluetooth roughness meter. In order to process or analyze these further, the Bluetooth roughness meter can be connected to a PC via the micro-USB interface and read out, analyzed and further processed using the free software in the download portal.

This roughness meter has a Bluetooth interface. This Bluetooth interface can be used to establish a direct connection with an Android device. This has several advantages. The stored data can be displayed and analyzed directly on the Android device. The measured values ​​measured by the Bluetooth roughness meter can also be exported and forwarded by the mobile device. In addition to transferring the measured values, it is also possible to control the Bluetooth roughness meter via the connected mobile device. This means that the measurement parameters can be set directly on the roughness meter with Bluetooth. At the same time, a measurement process can be started with the Bluetooth roughness meter via the Bluetooth interface. This has the particular advantage that, in contrast to starting via the buttons on a roughness meter, no vibrations are transmitted to the Bluetooth roughness meter. As a result, the operator receives a more precise and at the same time more reliable measurement result from the Bluetooth roughness meter.

– Selection of 21 parameters
– Large graphic OLED display
– Fast and accurate measurement
– 3 different cut-off wavelengths
– Micro-USB interface for PC connection
– Storage of 20 measurement curves
– Bluetooth
– incl. app

Parameter	Ra, Rq, Rsm, Rsk, Rz, Rt, Rp, Rv, Rc, Rmax, Ry(JIS),
	Rz(JIS), RP(ASME), Rpm(ASME), Rv(ASME),
	R3z, R3zmax, Rz1max, Rmr(c), Rdc, Rmr
Measuring range	Ra, Rq, Rc: 0.005 … 16 µm
	Rsm: 5 … 1000 µm
	Rsk: -1 … 1
	Rz, Rt, Rp, Rv, Rmax, Ry(JIS), Rz(JIS),RP(ASME),
	Rpm(ASME), Rv(ASME), R3z, R3zmax, Rz1max,
	Rdc: 0.02 … 200 µm Rmr(c), Rmr: 0 … 100 %
Probe tip radius	5 µm
Probe tip material	diamond, 90° angled
Max.recommended force	4 mN (0.4 gf)
with static measurement
Measuring principle	inductive
Radius of the longitudinal guide rail	45 mm
Standards	ANSIB46.1/ASMEB46.1 (DIN EN ISO 4287)
Maximum travel distance	15 mm
Cut off wavelength	0.25 mm / 0.8 mm / 2.5 mm
Scanning speed	0.135 mm/s at cutoff wavelength: 0.25 mm
	0.5 mm/s at cutoff wavelength: 0.8 mm
	1 mm/s at cut-off wavelength: 2.5 mm
	Return speed: 1 mm/s
Memory	20 measurement runs with all parameters
Measurement accuracy	<±10 %
Repeatability	<6 %
Display	OLED, Bluetooth
Units	μm / μinch (switchable)
Interface	Micro USB
Power supply	rechargeable Li-ion battery
