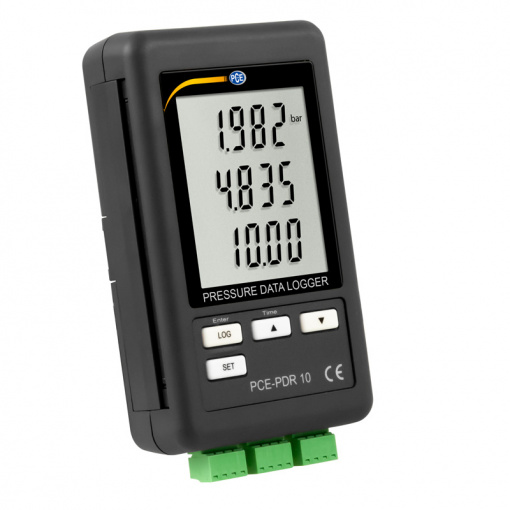

Manometer PCE-PDR 10
Pressure data logger with three sensor connections / SD card / CSV data format / Stand Wall-mounted / Battery-powered / Mains operation / 4 … 20-mA / LC display / Storage in CSV / Advanced storage interval
Pressure data logger with three sensor connections / SD card / CSV data format / Stand Wall-mounted / Battery-powered / Mains operation / 4 … 20-mA / LC display / Storage in CSV / Advanced storage interval
The Manometer PCE-PDR 10 is a display for measuring pressure. Up to three pressure sensors can be connected to this pressure data logger and synchronously read out and logged. Thanks to the 4 … 20-mA input signal, many different pressure sensors can be connected. Thanks to the advanced memory interval, measured values can only be stored after a change of ± 10 digits by the pressure data logger. As a result, constant and superfluous measured values are filtered by the pressure data logger. This saves a lot of storage space.
With the stand, the pressure data logger can be positioned freely at a workstation. Due to the included wall mounting set, the pressure data logger can also be fixed to a wall.
– 4 … 20-mA measuring signal
– Intelligent storage system
– Connection to a PC via RS232
– Wall mounting for permanent installation
– SD card slot for up to 16GB
– Measurement of three pressure sensors simultaneously
– Terminal connection
– Stand for use at a workplace
– Sensors optional!
– Intelligent storage system
– Connection to a PC via RS232
– Wall mounting for permanent installation
– SD card slot for up to 16GB
– Measurement of three pressure sensors simultaneously
– Terminal connection
– Stand for use at a workplace
– Sensors optional!
Measuring range | 4 … 20-mA, linear |
Measurement accuracy | ± (0.5% + 2d) |
Measuring rate | 1 s |
LC display | 60 x 50 mm |
Save interval | 5, 10, 30, 60, 120, 300, 600, auto |
(In the storage interval “Auto”, the measured value is only saved after a change of ± 10 digits) | |
Insertable memory cards | 1 … 16 GB |
Erroneously stored measured values | < 0.1% of total memory, typical |
outputs | RS232 |
Power supply through power supply | 9 VDC |
Power supply by batteries | 6 x 1.5V AAA (to power the clock display) |
Working conditions | 0 … 50°C / 32 … 122°F, < 85% rh |
Dimensions | 132 x 80 x 32 mm / 5.2 x 3.1 x 1.3 in |
Weight | 199 g / < 1 lb |
