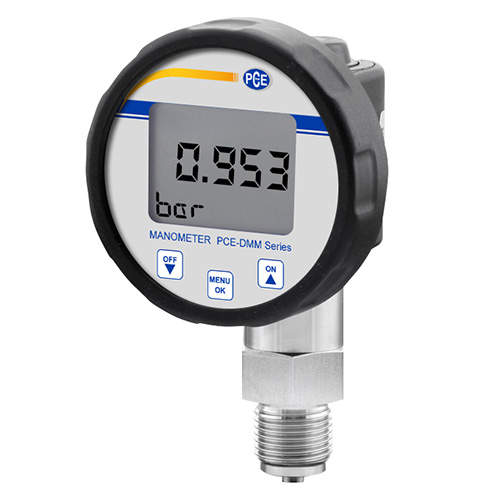

Manometer�to 600 bar/ Relative and absolute pressure measurement / ± 0.25% FSO accuracy
The�manometer PCE-DMM 50 is suitable for stationary and mobile pressure measurement. The�manometer PCE-DMM 50 is used in mechanical and plant engineering, laboratory technology andenvironmental technology. This�manometer�is battery powered. The measuring range of themanometer reaches up to 600 bar. Besides the presentation of the measured value, the�manometer saves the maximum and minimum readings. The built-in automatic switch-off can be programmed.
– To 600 Bar
– Relative and absolute pressure measurement
– Max-min function with reset
– 2 backlit display
– Different units
– Ceramic membrane
Nominal pressure relative inbar | 0.4 | 0.6 | 1 | 1.6 | 2.5 | 4 | 6 | 10 | 16 | 25 | |
Nominal pressure absolute inbar | – | 0.6 | 1 | 1.6 | 2.5 | 4 | 6 | 10 | 16 | 25 | |
Overpressure in bar | 1 | 2 | 2 | 4 | 4 | 10 | 10 | 20 | 40 | 40 | |
Burst pressure in bar | 2 | 4 | 4 | 5 | 5 | 12 | 12 | 25 | 50 | 50 | |
Nominal pressure relative / absolute in bar | 40 | 60 | 100 | 160 | 250 | 400 | 600 | ||||
Overpressure in bar | 100 | 100 | 200 | 400 | 400 | 600 | 800 | ||||
Burst pressure in bar | 120 | 120 | 250 | 500 | 500 | 650 | 880 | ||||
Negative pressure | -1 … 0 Bar; Overload: 4 Bar; Burst pressure: 7 Bar | ||||||||||
Vacuum resistance | P > 1 Bar: unrestricted | ||||||||||
General Specifications | |||||||||||
Accuracy | ± 0.25% FSO | ||||||||||
Measuring rate | 5/s | ||||||||||
Long term stability | < ± 0.1% FSO | ||||||||||
Media | Fuels, oils oxygen water | ||||||||||
Temperature ranges | Measuring material: -20 … 85°C / -4 … 185°F Environment: -20 … 70°C / -4 … 158°F Storage: -30 … 80°C / -22 … 176°F | ||||||||||
Pressure port / housing | Stainless steel�1.4404 | ||||||||||
Seal | FKM | ||||||||||
Diaphragm | Ceramic�Al2O3 | ||||||||||
Parts exposed to water | Pressure port, seals, diaphragm | ||||||||||
Display | LC Display | ||||||||||
Power supply | 2 x 3.6V Lithium batteries (1/2 AA) | ||||||||||
Battery life | 5 years standby | ||||||||||
Protection | IP65 | ||||||||||
Weight | ca. 300 g / < 1 lb |
