Differential Pressure Manometer PCE-P01-ICA Incl. ISO Calibration Certificate

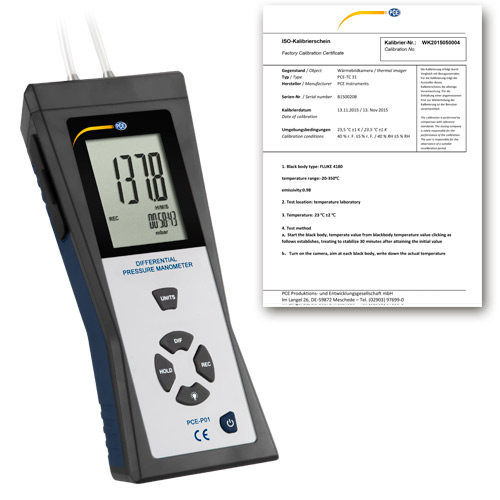

PCE-P01 Differential Pressure Manometer incl. ISO calibration certificate
Portable handheld meter measures differential pressure from -0.137 to 0.137 bar (-2.000 to 2.000 psi) / Features real-time data-logging capabilities using the included PC software and USB cable

PCE-P01 is a portable handheld digital differential pressure manometer used to measure differential pressure in pneumatic, compressor and pump installations, valves, tanks and heating, ventilation and air conditioning (HVAC) systems. The PCE-P01 displays min / max / average values right on the meter’s screen for comparison against current measurement values.

In addition, the PCE-P01 differential pressure manometer features real-time data-logging capabilities with an adjustable interval from 1 second to 24 hours. The device comes with 4 x 30 cm / 11.81 in silicon tubes, 1 x 9 V block battery and 1 x AC power adapter. Also included in the delivery contents are PC-compatible software and a USB cable. The software can be used to detect and document pressure fluctuations, and to display the data graphically or in a table. For real-time data recording, simply connect the differential manometer via USB to your computer, and save the measured values ​​according to your selected time interval. You can then calculate average values ​​directly in the software or export the saved data to Microsoft Excel.

– Easiest operation
– Measurement of differential pressure and static pressure in 11 selectable units: mbar, bar, psi, kPa, …
– Measuring range from -140 to +140 mbar
– Min / max and average value display
– “Hold” function
– Backlight can be switched on / off
– For long-term measurements including power supply
– Software with USB cable included
– Battery level indicator
– Auto-off function that can be switched off
– Zero point adjustment possible at any time
– Incl. ISO calibration certificate

Measuring range (±) inH2O� psi� mbar� kPa� inHg� mmHg� ozin²� ftH2O� cmH2O� kgcm²� bar	55.40� 2.000� 137.8� 13.79� 4.072� 103.4� 32.00� 4.612� 140.6� 0.140� 0.137
Resolution � inH2O� psi� mbar� kPa� inHg� mmHg� ozin²� ftH2O� cmH2O� kgcm²� bar	0.01� 0.001� 0.1� 0.01� 0.001� 0.1� 0.01� 0.001� 0.1� 0.001� 0.001
Accuracy (at 25°C / 77°F)	± 0.3% of measuring range
Linearity	± 0.2%
Response time	Approx. 0.5 sec.
Max. pressure	689 mbar
Operating temperature	0 … 50°C / 32 … 122°F
Storage temperature	-10 … 60°C / 14 … 140°F
Media	Air and non-explosive gases
Real-time data-logging interval   �	1 sec. to 24 h adjustable
Display	Dual LCD
Dimensions	210 x 75 x 50 mm / 8.27 x 2.95 x 1.97 in (H x W x D)
Weight (without batteries)	650 g / 1.44 lbs
Power supply	Battery: 1 x 9V block� AC adapter: 9V DC / 500-mA
