Differential Pressure Manometer PCE-917

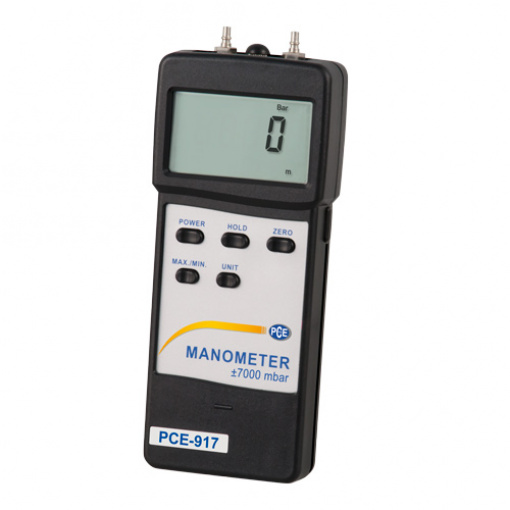

PCE-917 Differential Pressure Manometer
Portable handheld meter measures differential pressure from ± 5 to 7000 mbar (± 0.05 / 0.1 to 101.5 psi) / Optional PC software with RS-232 cable sold separately as a data transfer accessory

PCE-917 is a portable handheld digital differential pressure manometer used to measure differential pressure in pneumatic, compressor and pump installations, valves, tanks and heating, ventilation and air conditioning (HVAC) systems. The PCE-917 features a dust-proof, splash-resistant housing, allowing the meter to be used under adverse conditions.

The PCE-917 differential pressure manometer comes with 1 x 1 m / 3 ft long silicon tube, 2 x stainless steel tube adapters and 1 x 9V block battery. Optional PC software with RS-232 cable sold separately as a data transfer accessory. The software can be used to transmit the data to a computer for evaluating, documenting and storing pressure fluctuations. Simply connect the differential manometer via RS-232 to your computer for analysis. If your computer doesn’t have an RS-232 interface, you may acquire an RS-232 to USB adapter (see accessories tab for details).

– ± 5 to 7000 mbar (± 0.05 / 0.1 to 101.5 psi) measuring range
– 10 measurement units: psi, mbar, inH2O, mH2O, inHg, mmHg, Torr, Pa / kPa, atm, kg/cm²
– Designed to measure air, gas and non-corrosive liquid pressures
– Min, max and data hold functions
– RS-232 port / interface
– 15 mm / 0.6 in LCD screen
– Optional PC software with RS-232 cable sold separately as a data transfer accessory

mbar	Resolution: 5 Range: ± 7000
psi	Resolution: 0.05 / 0.1 Range: ± 101.5
inH2O	Resolution: 2 Range: ± 2800
mH2O	Resolution: 0.05 Range: ± 70.00
inHg	Resolution: 0.1 Range: ± 206.0
mmHg	Resolution: 5 Range: ± 5250
Torr	Resolution: – Range: –
Pa / kPa	Resolution: – Range: –
atm	Resolution: 0.005 Range: ± 6.905
kg/cm²	Resolution: 0.005 Range: ± 7.000
Accuracy	± 2% (full range)
Reproducibility	± 1%
Response time	0.8 second
Interface	RS-232 port
Power supply	1 x 9V block battery
Housing material	Plastic
Housing dimensions	Approx. 180 x 72 x 32 mm / 7.09 x 2.84 x 1.26 in
Weight	Approx. 210 g / < 1 lb
Warning:	***Exceeding the maximum pressure range will destroy the sensor***
