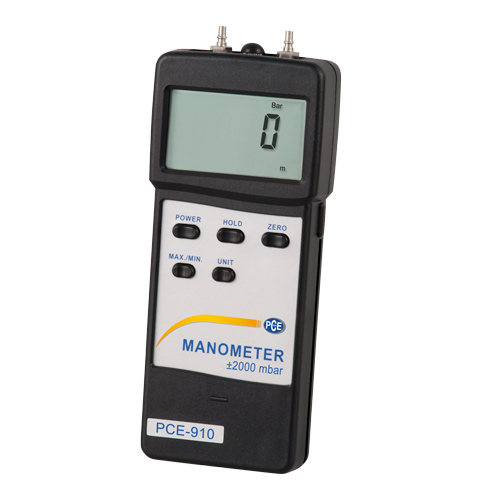

PCE-910 Differential Pressure Manometer
Portable handheld meter measures differential pressure from ± 1 to 2000 mbar (± 0.01 to 29.00 psi) / Optional PC software with RS-232 cable sold separately as a data transfer accessory
PCE-910 is a portable handheld digital differential pressure manometer used to measure differential pressure in pneumatic, compressor and pump installations, valves, tanks and heating, ventilation and air conditioning (HVAC) systems. The PCE-910 features a dust-proof, splash-resistant housing, allowing the meter to be used under adverse conditions.
The PCE-910 differential pressure manometer comes with 1 x 1 m / 3 ft long silicon tube, 2 x stainless steel tube adapters and 1 x 9V block battery. Optional PC software with RS-232 cable sold separately as a data transfer accessory. The software can be used to transmit the data to a computer for evaluating, documenting and storing pressure fluctuations. Simply connect the differential manometer via RS-232 to your computer for analysis. If your computer doesn’t have an RS-232 interface, you may acquire an RS-232 to USB adapter (see accessories tab for details).
– ± 1 to 2000 mbar (± 0.01 to 29.00 psi) measuring range
– 10 measurement units: psi, mbar, inH2O, mH2O, inHg, mmHg, Torr, Pa / kPa, atm, kg/cm²
– Designed to measure air, gas and non-corrosive liquid pressures
– Min, max and data hold functions
– RS-232 port / interface
– 15 mm / 0.6 in LCD screen
– Optional PC software with RS-232 cable sold separately as a data transfer accessory
mbar | Resolution: 1 Range: ± 2000 |
psi | Resolution: 0.01 Range: ± 29.00 |
inH2O | Resolution: 0.5 Range: ± 802.0 |
mH2O | Resolution: 0.01 Range: ± 20.40 |
inHg | Resolution: 0.02 Range: ± 59.00 |
mmHg | Resolution: 1 Range: ± 1500 |
Torr | Resolution: – Range: – |
Pa / kPa | Resolution: – Range: – |
atm | Resolution: 0.001 Range: ± 1.974 |
kg/cm² | Resolution: 0.001 Range: ± 2.040 |
Accuracy | ± 2% (full range) |
Reproducibility | ± 1% |
Response time | 0.8 second |
Interface | RS-232 port |
Power supply | 1 x 9V block battery |
Housing material | Plastic |
Housing dimensions | Approx. 180 x 72 x 32 mm / 7.09 x 2.84 x 1.26 in |
Weight | Approx. 210 g / < 1 lb |
Warning: | ***Exceeding the maximum pressure range will destroy the sensor*** |
