300 to 1500 rpm / Timer function / Pulse mode

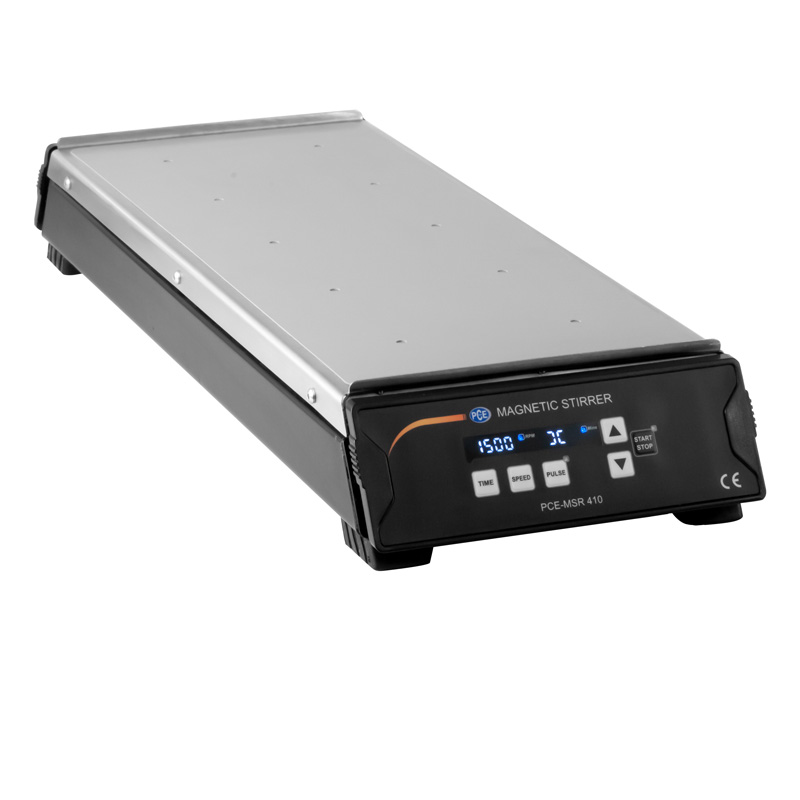

In order to ensure that the magnetic stirrer stands securely, the housing is equipped with 4 rubber feet. The stirring platform of the magnetic stirrer is made of stainless steel and coated with a silicone layer to prevent slipping. Containers with a diameter of approx. 80 mm can be set up for each stirring point on the magnetic stirrer. The magnetic stirrer is able to stir volumes of up to 400 ml per stirring point.
– 10 stirring points
– Adjustable from 300 to 1500 rpm
– Stainless steel platform with silicone coating
– 400 ml per stirring point
– Timer and pulse function
– 110 V or 230 V power supply
Number of stirring points | 10 |
Power consumption | 11 W |
Drive of the stirring points | Brushless motors |
Max. stirring quantity | 400 ml per stirring point |
Max. diameter container / stirring point | 80 mm |
Adjustable speed | 300 … 1500 RPM |
Accuracy of speed | 10 RPM |
Timer range | 1 … 999 minutes infinite |
Recommended length of stir bars | 25 mm |
Protection class | IP 42 |
Operating conditions | 5 … 40 °C / max. 80 rH |
Power supply / current consumption | 110 V AC / 3.6 A |
230 V AC / 1.7 A | |
Interface | RS232 only for service purposes |
Dimensions of stirring area | 460 x 178 mm |
Dimensions | 565 x 196 x 75 mm |
Weight | ca. 5 kg |
