Inspection Camera PCE-WSM 100

Name: Inspection Camera PCE-WSM 100
SKU: 14923
Availability: BackOrder

PCE-WSM 100

Availability : กรุณาติดต่อสอบถาม

หมวดหมู่: Inspection Camera

รายละเอียดเพิ่มเติม
บทวิจารณ์ (0)

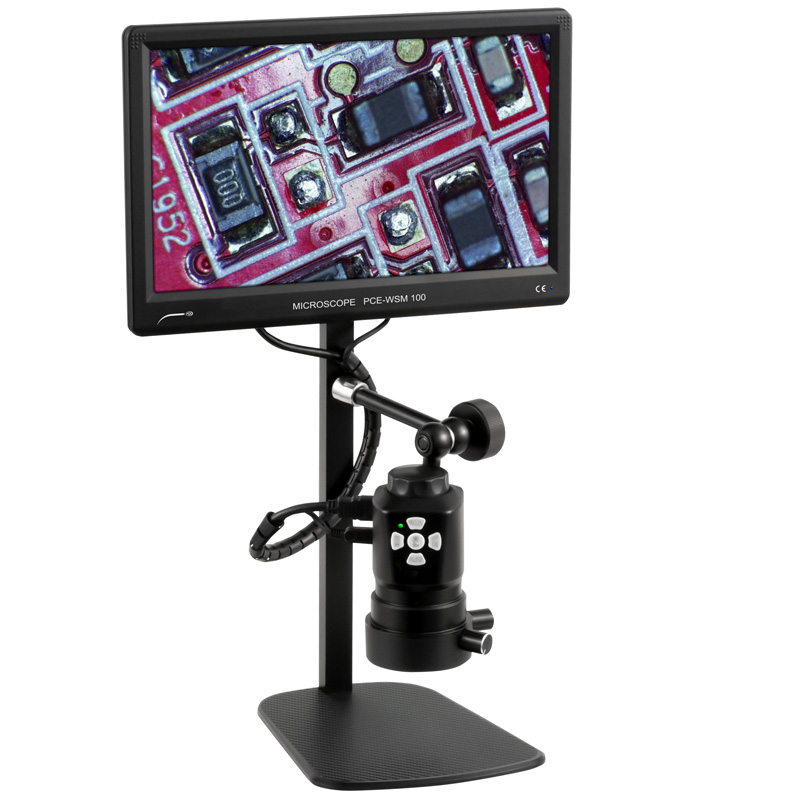

Inspection Camera PCE-WMS 100

Workshop digital microscope with SD memory / USB interface / HDMI display /�

Swivel arm�/ 220x magnification / Full HD microscope

The inspection camera PCE-WMS 100 is the ideal aid for repair and service workshops. Thanks to the movable camera arm, the camera can be precisely aligned on the object to be optically examined. The large 12.5″ display helps the workshop staff to recognize the objects that the camera focuses on. With this workshop inspection camera, the display is connected via HDMI to the camera. The workshop inspection camera can be connected to a PC via the integrated USB interface.

To document the recorded images, they can be saved to an SD card. The workshop inspection camera supports memory cards up to 64 GB. For good illumination of objects that are examined with the workshop inspection camera, the tester is equipped with an LED ring light.

– 12.5″ LC Display
– 220x magnification
– Full HD resolution
– HDMI & USB interface
– SD memory to 64 GB
– Mobile camera arm

Display	12.5″ LC display
	1920 x 1080 pixels
Resolution	2304 x 1536 pixels
Magnification	4.8x … 220x
Light source	LED ring light
Connections	HDMI
	USB
Memory	SD card max. 64 GB
Power supply	110 … 240 V AC / 50 Hz / 60 Hz
Working height	33 … 320 mm / 1.3 x 12.6″
Dimensions	165 x 215 x 470 mm / 6.5 x 8.5 x 18.5″
Operating conditions	0 … 40 °C / 32 … 104 °F / 30 … 60 % r.H.
Storage conditions	-20 … 60 °C / -4 … 140 °F / 10 … 80 % r.H.
