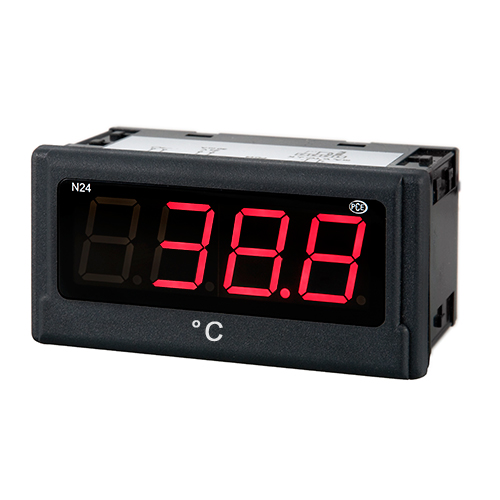

Temperature Indicator PCE-N24T for Pt100 and thermal elements / 4-digit LED /�20 mm digit height / compatible with PCE-PD14 programming adapter

The digital indicator PCE-N25T is used for processing signals coming from temperature sensors. Depending on your specific needs, the digital indicator can be ordered with different inputs for thermocouples (type J, K) or resistance thermometers (Pt100). The input signal of the digital indicator is freely scalable, which increases its application possibilities.

The measured values are shown on the large 5-digit LED display. As an option, an integrated 24 V sensor power supply system is available for connecting 2-wire sensors or transducers. The power supply of the digital indicator itself can also be selected, depending on your needs. To set up the digital indicator, you can use the optional programming adaptor PCE-PD14 to connect it to a PC. There you can use the free PC software LPCon to adjust the settings.

– For PT100 sensor or thermal element
– Diameter: 96 x 48 x 64 mm
– Measurement speed: > 0.5 sec.

– Solid Enclosure
– 4 digit LED display (20 mm)
– Display: red on black


Input (arbitrary) Pt100 Thermal element J Thermal element K	-50 °C … +150 °C / -50 °C … +400 °C -50 °C … +1200 °C -50 °C … +1370 °C
Accuracy	± (0.2 % FS + 1 dgt.)
Internal resistance	10 Ω ± 1 %
Scaling	2-point-scaling
Display	4-digit, 7-segments, LED, digit height: 20 mm
Display range	-1999 … 9999
Power Source for Sensor (arbitrary)	24 V DC, max. 30 mA
Surrounding temperature	During Operation: -10 °C … +55 °C Storage: : -25 °C … +85 °C
Diameters	96 mm x 48 mm x 64 mm
Size of switch board	92 mm x 45 mm (according to DIN)
Power Source (arbitrary)	24 V AC 110 V AC 230 V AC 85 … 253 V AC/DC 20 … 40 V AC/DC
Protection Class	Front: IP 65
Weight	< 200 g
Assembly	Mounting clips with clamp screws, Connection via plug board
Enclosure	Solid synthetic enclosure
