5-digit LED display / IP65 protected front / optional sensor power supply system / different inputs available / setup via software

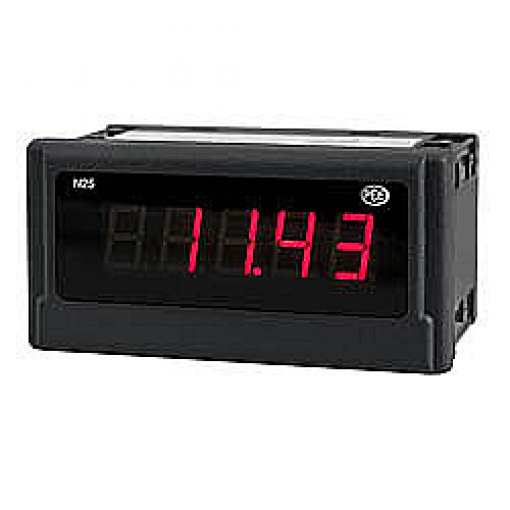

The pressure indicator PCE-N25S is used for processing standardised signals. Depending on your specific needs, the pressure indicator can be ordered with different inputs, such as 0…20 mA, 4…20 mA, 0…60 mV, 0…10 V, ±60 mV or ±10 V. The input signal of the pressure indicator is freely scalable, which increases its application possibilities. The measured values are shown on the large 5-digit LED display. As an option, an integrated 24 V sensor power supply system is available for connecting 2-wire sensors or transducers. The power supply of the pressure indicator itself can also be selected, depending on your needs. To set up the pressure indicator, you can use the optional programming adaptor PCE-PD14 to connect it to a PC. There you can use the free PC software LPCon to adjust the settings.

– IP65 protected front
– 6 different standardised signal inputs available
– configuration via software
– 5-digit LED display
– freely scalable

Technical specifications
Input (selectable)	0 … 20 mA 4 … 20 mA 0 … 60 mV 0 … 10 V ± 60 mV ± 10 V
Accuracy	± (0,2 % FS + 1 digit)
Internal resistance	10 Ohm ± 1 %
Scaling	2 points
Display	5-digits, 7 segments, LED, height: 14 mm
Display range	-19999 … 99999
Environmental conditions	During operation: -10 … +55 °C During storage: -25 … +85 °C
Power supply	230 V AC 110 V AC 24 V AC 85…235 V AC/DC 20…40 V AC/DC
Dimensions	96 x 48 x 64 mm
Panel cutout	92 x 45 mm (according to DIN standard)
Protection class	Front: IP 65
Weight	< 200 g
Mounting	Mounting clips with screws, Connection via screw terminals
Housing	robust plastic housing
