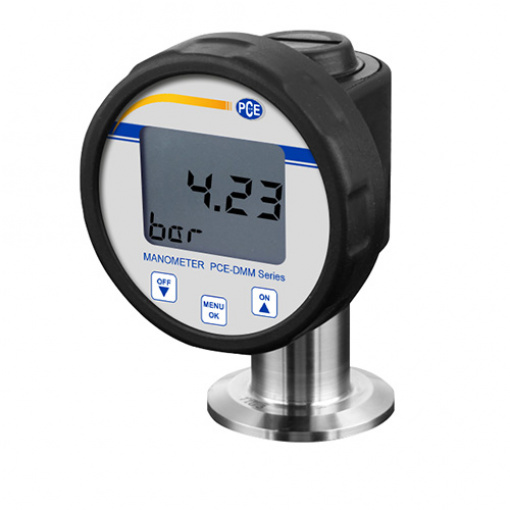

Pressure Indicator PCE-DMM 21

Name: Pressure Indicator PCE-DMM 21
SKU: 20038
Availability: BackOrder

PCE-DMM 21

Availability : กรุณาติดต่อสอบถาม

หมวดหมู่: Pressure Indicator

รายละเอียดเพิ่มเติม
บทวิจารณ์ (0)

Digital PressureIndicator/ Digital pressure to 40 bar / Relative and absolute pressure measurement / ± 0.125% FSO accuracy

The pressure indicator PCE-DMM 21 is suitable for flush sanitary installation. The pressure indicator may represent on its rotatable display pressures up to 40 bar, absolute or relative. The filling of the pressure indicator has a food safe FDA approval. The flush mounting of the pressure indicator can be sterilized. The display on the�pressureindicator is rotatable.

– To 400 Bar
– Relative Pressure Measurement
– Max-Min Function with reset
– 2 Backlit display
– Different units
– Stainless steel�flush diaphragm

Nominal pressure relative inbar	0.1	0.16	0.25	0.40	0.60	1		1.6	2.5	4	6
Nominal pressure absolute inbar				0.40	0.60	1		1.6	2.5	4	6
Overpressure in bar	0.5	1	1	2	5	5		10	10	20	40
Burst pressure in bar	1.5	1.5	1.5	3	7.9	7.5		15	15	25	50

Nominal pressure relative / absolute in bar	10	16	25	40
Overpressure in bar	40	80	80	108
Burst pressure in bar	50	120	120	210
Negative pressure	-1 … 0 bar; Overload: 5 bar; Burst pressure: 7.5 bar
Vacuum resistance	P > 1 Bar: unrestricted
General Technical Data
Accuracy							> 0.4 Bar: < ± 0.125 % FSO < 0.4 Bar: < ± 0.25 % FSO
Measuring rate							1/s
Long term stability							< ±0.1% FSO
Media							Fuels, oils, gases, water
Temperature ranges							Fluid: -20 … 85°C / -4 … 185°F Environment: -20 … 70°C / -4 … 158°F Storage: -30 … 80°C / -22 … 176°F
Pressure port / housing							Stainless steel�1.4404
Seal							FKM
Diaphragm							Stainless steel�1.4435
Parts that come into contact with water							Pressure port, seals, diaphragm
Display							LC Display
Power supply							2 x 3.6V lithium battery (1 / 2AA)
Battery life							1.5 years standby
Protection							IP65
Weight							ca. 300 g / < 1 lb
