Power Indicator PCE-NR30

Name: Power Indicator PCE-NR30
SKU: 20014
Availability: BackOrder

PCE-NR30

Availability : กรุณาติดต่อสอบถาม

หมวดหมู่: Power Indicator

รายละเอียดเพิ่มเติม
บทวิจารณ์ (0)

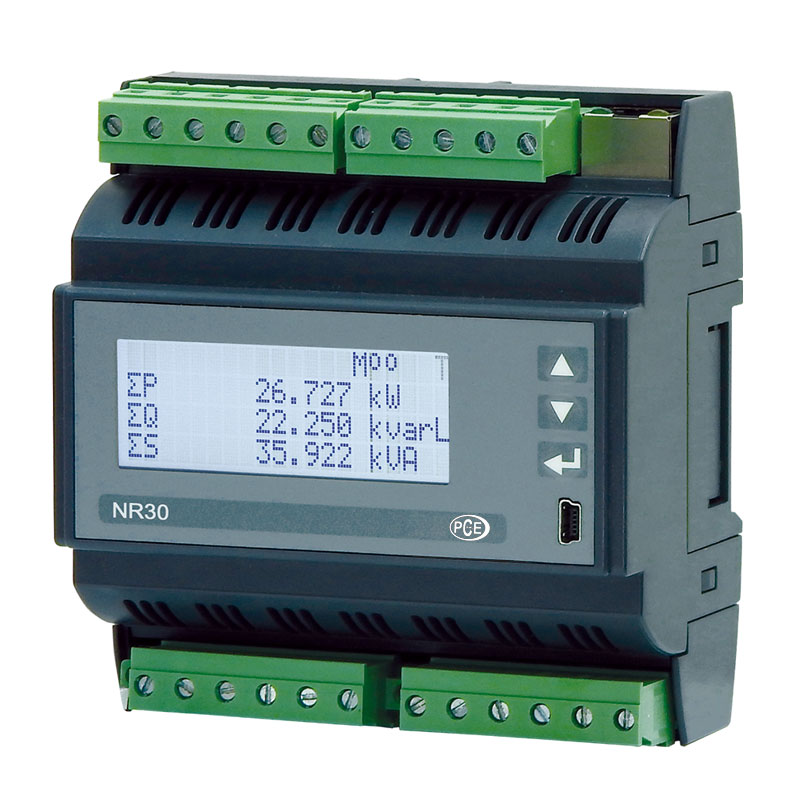

Power indicator up to 63 A for Top-Hat DIN rail mounting / 1 and 3-phase measurement / memory / Ethernet / LC display / alarm relay / Modbus RTU, TCP / HTTP and FTP function

The power indicator PCE-NR30 is able to measure currents directly up to 63 A AC. The power indicator can also be used with the aid of x / 1A or x / 5A current transformers. The power indicator measures network parameters of symmetrically and asymmetrically loaded single-phase 2-wire systems and three-phase 3 or 4-wire systems. The PCE-NR30 power indicator is also able to measure harmonics up to the 51st order. The power indicator impresses with its high accuracy class of 0.2s. Thus, the indicator meter is also suitable for demanding measurement and research tasks. The display always provides information about all network parameters and the maximum and minimum measured values can be shown directly at the push of a button. Two adjustable alarm outputs round off the overall package of the power indicator. Optionally, the power indicator can be expanded by 4 x 4 … 20 mA or 0 … 10 V outputs via the PCE-S4AO module.

The power indicator is mounted on the top hat rail and is built according to EN62208. An RS485 and an Ethernet interface are available as standard. The interface is accessed via Modbus RTU or Modbus TCP. It is also possible to read out the power indicator via HTTP request or via FTP. The power indicator can be set using the buttons on the front or via the USB interface using the programming software.

– Measurement of 54 network parameters
– 1-phase 2-wire or 3-phase 3- or 4-wire symmetrical and asymmetrical measurement
– Accuracy class 0.2s
– Illuminated LC display
– Direct measurement up to 63A and indirect measurement via current transformer (x / 1A or x / 5A)
– Scaled display when measuring with the aid of current transformers
– Storage of minimum and maximum values
– 2 configurable alarm outputs
– Optional analog outputs
– RS485 Modbus RTU interface
– Ethernet interface Modbus TCP / HTTP / FTP
– 8 GB memory
– Configuration by software
– DIN rail mounting

Technical Data
Measuring range
Current (class 0.2) 1 A AC 5 A AC 63 A AC	0.1 … 1.2 A 0.5 … 6.0 A 0.1 … 70 A max. display range: 100kA
Voltage L-N (class 0.2) 57.7 V AC 100 V AC 230 V AC 400 V AC	11.5 … 70 V 20 … 120 V 46 … 276 V 80 … 480 V max. display range: 480 kV
Voltage L-L (class 0.5) 100 V AC 170 V AC 400 V AC 690 V AC	20 … 120 V 34 … 204 V 80 … 480 V 138 … 830 V max. display range: 830 kV
Active power (class 0.5)	± 1999.9 W max. display range: ± 1999.9 MW
Reactive power (class 1)	± 1999.9 Var max. display range: ± 1999.9 MVar
Apparent power (class 0.5)	0 … 1999.9 Va max. display range: 0 … 1999.9 MVA
Active energy (class 0.2s)	± 1999.9Wh max. display range: ± 1999.9 MWh
Reactive energy (class 1)	± 1999.9 Varh max. display range: ± 1999.9 MVarh
Apparent energy (class 0.5)	0 … 1999 VAh max. display range: 0 … 1999.9 MVAh
Active power factor	-1 …. 1
Coefficient tg	-999.99 … 999.99
Frequency	45 … 65 Hz
Harmonic distortion	0 … 100 %
Harmonics current and voltage up to the 51st order	0 … 100 %
Additional Technical Data
Relay output	2 x relays (250 V / 0.5 A AC or 30 V / 5 A)
USB	USB 1.1 / 2.0
RS485 interface	Modbus RTU 8N2, 8E1, 8O1, 8N1 Address: 1 … 247 Baud rate: 4800, 9600,19200, 38400, 57600, 115200
Ethernet 10/100	protocols: TCP, HTTP. FTP
Display	20 x 4 LCD lines with lighting
Dimensions	105 x 110 x 60 mm
Weight	300 g
Protection class	Front: IP50 Connection side: IP00
Power supply	85 … 253 V AC / 90 … 300 V DC 20 … 40 V AC / 20 … 60 V DC
Power consumption	6 VA
Power loss	Voltage side: 0.5 VA Current side: 0.1 VA (1/5 A) / 2 VA (63 A)
Heating time	5 minutes
Operating conditions	-10 … 55 °C / 0 … 95 % r.H.
Operating position	any
Overload	Voltage: 2 x Un (5 seconds) Current: 50 A at 1/5 A (1 second) 630 A to 63 A (1 second)
Electromagnetic compatibility	EN 61000-6-2 EN 61000-6-4
Housing insulation	double according to EN61010-1
Degree of pollution	2
Installation category	III
Operating conditions	-10 … 55 °C / 0 … 95 % r.H.
