HVAC Meter PCE-P01 Differential Pressure

PCE-P01 HVAC Meter
Portable handheld manometer measures differential pressure from 0.001 to 0.137 bar (0.001 to 2.000 psi) / Features real-time data-logging capabilities using the included PC software and USB cable

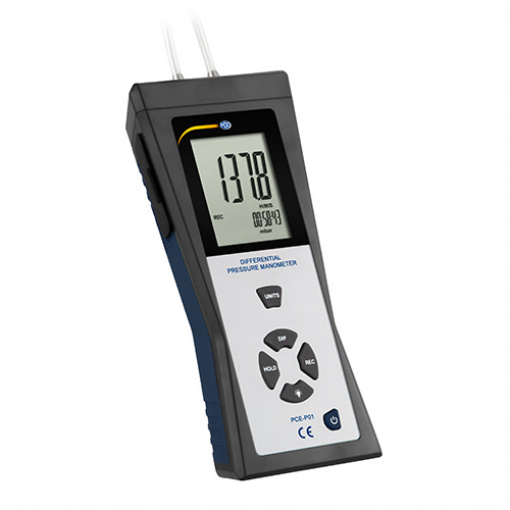

PCE-P01 is a portable handheld digital HVAC meter or differential pressure manometer used to measure differential pressure in pneumatic, compressor and pump installations, valves, tanks and heating, ventilation and air conditioning (HVAC) systems. The PCE-P01 displays min / max / average values right on the meter’s screen for comparison against current measurement values.

In addition, the PCE-P01 differential pressure manometer features real-time data-logging capabilities with an adjustable interval from 1 second to 24 hours. The device comes with 4 x 30 cm / 11.81 in silicon tubes, 1 x 9V block battery and 1 x AC power adapter. Also included in the delivery contents are PC-compatible software and a USB cable. The software can be used to detect and document pressure fluctuations, and to display the data graphically or in a table. For real-time data recording, simply connect the differential manometer via USB to your computer, and save the measured values ​​according to your selected time interval. You can then calculate average values ​​directly in the software or export the saved data to Microsoft Excel.

– Easiest operation
– Measurement of differential pressure and static pressure in 11 selectable units: mbar, bar, psi, kPa, …
– Measuring range from -140 to +140 mbar
– Min / max and average value display
– “Hold” function
– Backlight can be switched on / off
– For long-term measurements including power supply
– Software with USB cable included
– Battery level indicator
– Auto-off function that can be switched off
– Zero point adjustment possible at any time

Measuring range� inH2O� psi� mbar� kPa� inHg� mmHg� ozin²� ftH2O� cmH2O� kgcm²� bar	55.40� 2.000� 137.8� 13.79� 4.072� 103.4� 32.00� 4.612� 140.6� 0.140� 0.137
Resolution � inH2O� psi� mbar� kPa� inHg� mmHg� ozin²� ftH2O� cmH2O� kgcm²� bar	0.01� 0.001� 0.1� 0.01� 0.001� 0.1� 0.01� 0.001� 0.1� 0.001� 0.001
Accuracy (at 25°C / 77°F)	± 0.3% of measuring range
Linearity	± 0.2%
Response time	Approx. 0.5 sec.
Max. pressure	689 mbar
Operating temperature	0 … 50°C / 32 … 122°F
Storage temperature	-10 … 60°C / 14 … 140°F
Media	Air and non-explosive gases
Real-time data-logging interval   �	1 sec. to 24 h adjustable
Display	Dual LCD
Dimensions	210 x 75 x 50 mm / 8.27 x 2.95 x 1.97 in (H x W x D)
Weight (without batteries)	650 g / 1.44 lbs
Power supply	Battery: 1 x 9V block� AC adapter: 9V DC / 500-mA
