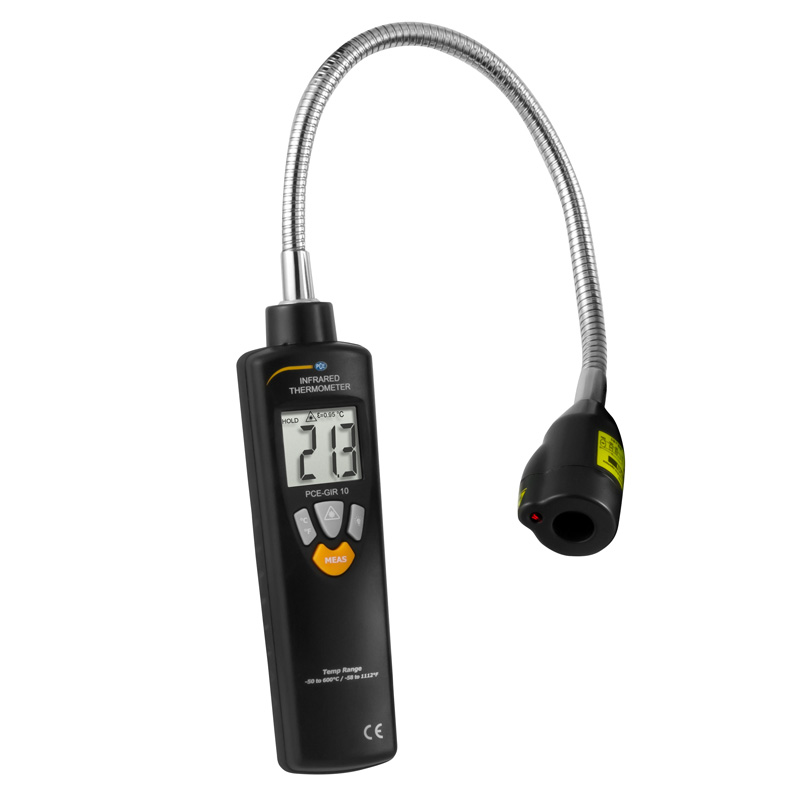

HVAC meter PCE-GIR 10
Non-contact measurement of surface temperatures / Sensor on the gooseneck / Pyrometer for Temperature measurement in hard to reach places
Non-contact measurement of surface temperatures / Sensor on the gooseneck / Pyrometer for Temperature measurement in hard to reach places
The pocket-size HVAC meter PCE-GIR 10 is very good value for money and easy to use. This HVAC meter is suitable for industry and craft for maintenance and servicing, eg in the field of heating, ventilation, air conditioning, motor vehicles, in the control of electrical systems and control cabinets. The HVAC meter with illuminated display can also be used under difficult conditions. It has a visible laser beam for accurate bearing, non-contact and fast temperature measurement from a safe distance on hot or moving objects.
Thanks to the sensor, which is mounted on a gooseneck, the PCE-GIR 10 HVAC meter can also be used to measure temperatures in hard-to-reach places. The emission value of this HVAC meter is fixed at 0.95 and thus covers 90% of all temperature measurement tasks.
– LCD display with backlight
– Automatic shutdown
– Fast measurement sequence (0.5 s)
– 8: 1 spot size ratio
– Optical laser beam
– Measurement holding function
– Sensor on the gooseneck
– Incl. battery, bag and instructions
– Automatic shutdown
– Fast measurement sequence (0.5 s)
– 8: 1 spot size ratio
– Optical laser beam
– Measurement holding function
– Sensor on the gooseneck
– Incl. battery, bag and instructions
Temperature measurement range � | -30 … 600°C / -22 … 1112°F |
Accuracy | < -20°C: ± 5°C / -4°F: ± 9°F < 200°C: ± (2% of measured value + 2°C) / 392°F: ± (2% of measured value + 3.6°F) < 600°C: ± (2% of measured value + 2°C) / 1112°C: ± (2% of measured value + 3.6°F) |
Resolution � | < -20°C: 0.1°C / -4°F: 0.18°F < 200°C: 0.1°C / 392°F: 0.18°F < 600°C: 1°C / 1112°F: 1.8°F |
Measurement spot (measuring distance to measuring point size) � | 8: 1 |
Spectral sensitivity | 8 … 14 μm |
Emissivity (fixed) � | 0.95 |
Laser point / target Point� | Visible single-point laser beam |
Display | LCD display with lighting |
Ambient temperature range � | 0 … 50°C / 32 … 122°F |
power supply | 9V block battery |
Dimensions | 174 x 45 x 40 mm / 6.9 x 1.8 x 1.6 in� |
Weight | 180 g / < 1 lb |
