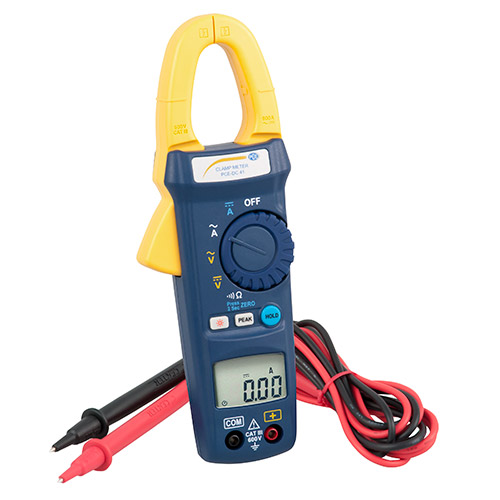

HVAC Meter PCE-DC 41

The HVAC meter PCE-DC 41 can measure voltages up to 600 V, currents up to 600 A and electrical resistance up to 1000 Ω. To perform a measurement, you can either use the measuring leads, which are included in the package of the HVAC meter, or you can use the integrated clamp mechanism. By using the clamp of the HVAC meter, you are able to measure the electrical parameters of an electrical conductor contact-free and without disconnecting it. You can also check the continuity with the HVAC meter.

Due to its compact design and light weight, the device is well-suited for mobile use. When using the clamp mechanism, it is also possible to run the HVAC meter with one hand only. The measured data is shown on the large backlit 4-digit display. By using the peak-hold or data-hold function, you can also freeze the readings on the display. The auto power-off function saves battery power, when the device is not in use.

– Voltage: 600 V AC/DC
– Current: 600 A AC/DC
– Electrical Resistance: 1000 Ω
– Clamp mechanism
– Continuity check

– Peak- and data-hold function
– Measuring leads included in the package
– 4-digit display
– Display backlight
– Auto power-off
