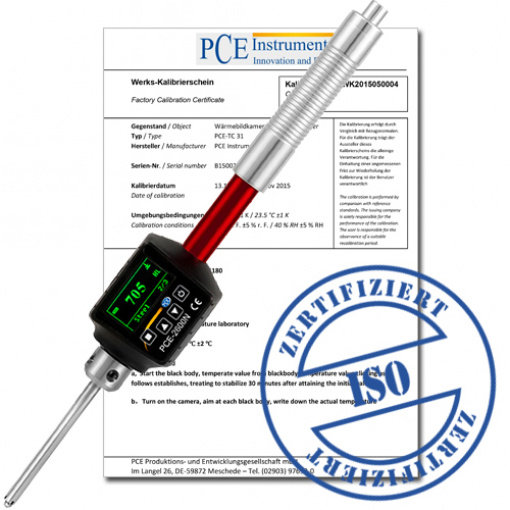

Portable Metal Hardness Tester with ISO Certificate PCE-2600N-ICA

Name: Portable Metal Hardness Tester with ISO Certificate PCE-2600N-ICA
SKU: 13872
Availability: BackOrder

PCE-2600N-ICA

Availability : กรุณาติดต่อสอบถาม

หมวดหมู่: Hardness Tester

รายละเอียดเพิ่มเติม
บทวิจารณ์ (0)

Portable Metal Hardness Tester with ISO Calibration Certificate PCE-2600N-ICA for measuring surface hardness / OLED /�Compact design / Handheld measuring instrument/�

Limit alarm / Measuring direction 360°�

The hardness tester is used wherever a fast hardness test has to be carried out. It is possible with the hardness tester to determine the surface hardness of many metals. The hardness tester is particularly suitable for quality or material inspection. The measured values can be stored in the internal memory and recalled later. Please note that the measured values can only be read from the hardness tester on the display and it does not offer any readout.

One-hand operation of the hardness tester allows for convenient use in different locations. Due to its construction, the hardness tester also offers the possibility to determine the surface hardness in bores or other depressions. The small design of the hardness tester contributes to the functionality as does the light OLED. The OLED from the hardness tester shows many functions so that the user directly recognizes which parameters are measured, which measuring direction is selected, and which hardness has been measured.

– Limit alarm
– Suitable for measurement in bores
– Surface measurement on many metals
– Internal memory for measurements
– Bright OLED
– Handheld measuring instrument
– Includes ISO calibration certificate

Measurement method	According to Leeb
Impactor	DL

Measuring range	HLD: 170 … 960 HRC: 17.9 … 69.5 HB: 19 … 683 HV: 80 … 1042 HS: 30.6 … 102.6 HRA: 59.1 … 88 HRB: 3.5 … 101.7
Measurement accuracy	HLD: ± 0.5%
Maximum hardness	1042 HV
Striker	Type D
Display	128 x 64 mm / 5 x 2.5 in OLED
Repeatability	HLD: ± 0.8%
Hardness max.	1042 HV
Measurement units	HLD, HRC, HB, HV, HS, HRA, HRB
Display	15 mm / 0.59 in

Material	Steel
	Cast steel
	Alloy tool steel
	Stainless steel
	Cast iron
	Nodular cast iron parts
	Cast aluminum alloy
	Brass
	Bronze
	Tin bronze

Measuring ranges on different material surfaces

Material
Steel	HRC: 17.9 … 68.5 HRB: 59.6 … 99.6 HRA: 59.1 … 85.8 HB: 127 … 651 HV: 83 … 976 HS: 32.2 … 99.5

Tool steel	HRC: 17.9 … 68.5 HRB: 59.6 … 99.6 HRA: 59.1 … 85.8 HB: 127 … 651 HV: 83 … 976 HS: 32.2 … 99.5

Stainless steel	HRB: 46.5 … 101.7 HB: 85 … 655 HV: 85 … 802

Cast iron	HB: 93 … 334

Brass	HRB: 13.5 … 95.3 HB: 40 … 173

Bronze	HB: 60 … 209

Copper	HB: 45 … 315

Battery life	ca. 10 h
Power supply	Polymer Li-ion battery, 3.7V
Interface	USB 2.0
Dimensions	205 x 32 x 25 mm / 8 x 1.3 x 1 in
Weight	650 g / 1.4 lbs
Display	128 x 64 mm / 5 x 2.5 in OLED
Opearting conditions	-10 … 50°C / 14 … 122°F , <90% r.H.
Storage conditions	-30 … 60°C / -22 … 140°F, <90% r.H.
