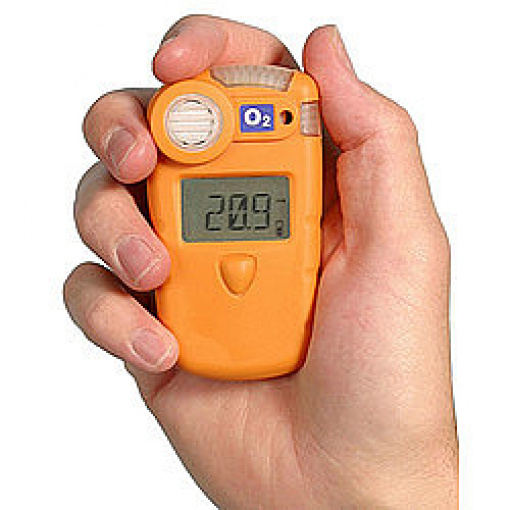

Gas Detector Gasman-O2 “Oxygen”

Gasman-O2 Unique Gas Detector
personal protection with datalogger / Optional software and data cable ATEX II 1G EEx ia IIC T4 / ATEX II 2G EEx ia d IIC T4 (EEx ia (d) IIC T3/T4)

This Gas Detector is a unique gas meter which protects against a specific gas, inflammable or toxic. The Gas Detector Gasman warns with a penetrating alarm and an optical signal (useful when there are loud noises in the surrounding area) of the existence of dangerous gas concentrations and shows on screen the value of the gas measurement. In addition with this gas meter you are able to save measurements and transmit them onto the computer for evaluation. For that, it is necessary to require the additional option of data logger and optional software. The function of logger will allow you to keep all the values in the meter with a quota of measurement from 1 minute to a total of 900 hours. The data saved in the apparatus can be, at any time, transferred onto the computer or laptop for later evaluation. The Gas Detector can be calibrated and certified according to DIN ISO.

In addition it is verified according to the most recent directives (94/9/EG) and disposition on the protection against explosions (ExVo). Every two years recalibrations can be made where you choose the sensor (according to the type of gas) with which the apparatus must be equipped. You will be able to choose between 12 standard sensors, but you can also request other types of special sensors. In addition to the traditional uses of the Gas Detector such as in industry, institutions and investigations, this gas meter is an economic alternative to be used by the fire brigades (with Ex- sensor for inflammable gases). The Gas Detector fulfills all the European and international norms, even ATEX and UL standards. Another special use is the measurement of the ozone concentration, allowing this small Gas Detector to be complemented with an ozone sensor. You can send us the Gas Detector for maintenance and recalibration, taking into account the indications of the ISO manual of your company (for example, twice a year). The Gas Detector can be dismounted, cleaned, and recalibrated. If a sensor can no longer be calibrated or its period of validity has already expired, you will receive the corresponding information and spare sensors can be found in our online shop. You can request the optional software to set up, calibrate, and adjust the limits of the alarm and the function of the datalogger (also optional) to read the values saved in the Gas Detector. This software represents the data in the form of graphs or tables and it is also possible to export them to other programs.

Notice: The combined charging station serves as interface for the data transmission, the station is used to load the storage cells of the meter of gas for “inflammable gases” + “oxygen” and of interface for the PC for the rest of the models.



Free set up level alarm, vibratory alarm, LED alarm, beeper Comfortable to use all day long Internal security makes it possible to take it on Ex-zone Loud sound Robust housing Dust and water resistant – IP 65/67

Can only be disconnected pressing two keys simultaneously LCD with backlight Internal calibration by means of the keyboard in the frontal part of the meter Datalogger function Optional software compatible with Windows to set up the meter in a fast and easy way to read the internal memory Connection to PC takes place by means of the cable of the interface
