Force Gauge PCE-DDM 3WI

PCE-DDM 3WI Force Gauge
Measurement range up to 3 t / Peak hold function / Includes shackles and protective carrying case

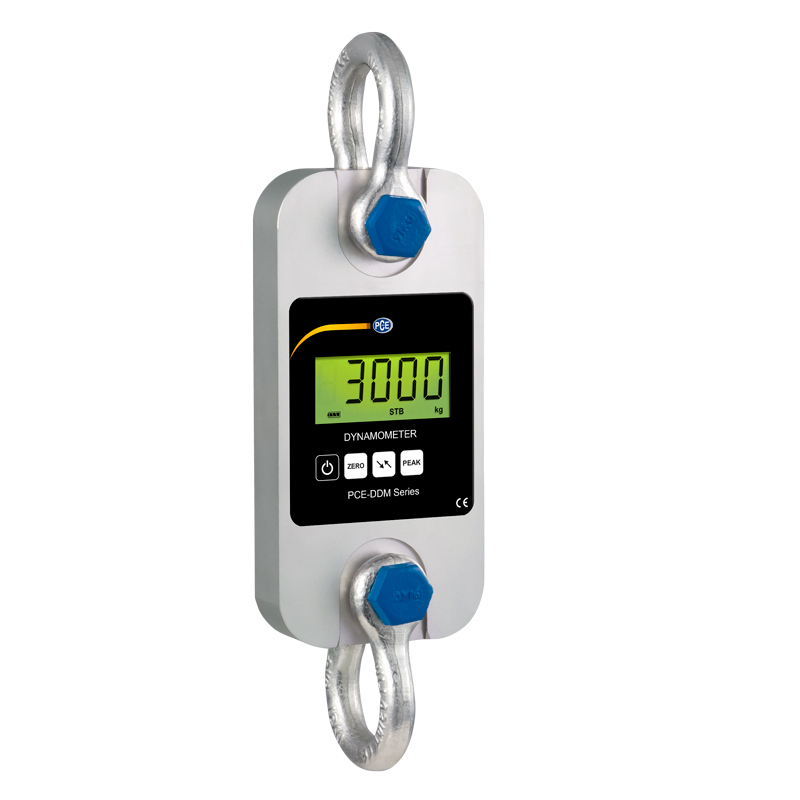

The PCE-DDM 3WI Force Gauge is the ideal tool for measuring strong tensile forces. The PCE-DDM 3WI Force Gauge is delivered in a protective carrying case and includes two shackles made of heavy-duty aluminum. The instrument is manufacturer calibrated, but can be certified to ISO standards for an additional fee. Despite its high measurement capacity, the Force Gauge is a compact portable device with a low net weight. Interesting functions of the Force Gauge are the peak hold function, summation function, and the ability to select different units of measurement such as kg / t / lbs / N / kN. The instrument is only suitable for tension force testing. For compression force testing, please see the PCE-FB series force gauges.

• Measurement range up to 3000 kg / 30 kN
• High capacity
• Compact and portable
• Long battery life
• Peak hold function
• Summation function
• Selectable units of measurement: kg / t / lb / N / kN
• Adjustable gravitation range
• Shackles and carrying case included

Technical specifications
Measuring range	3000 kg / 30 kN / 6614 lbs
Resolution	1 kg / 10 N / 2.2 lbs
Min. range	10 kg / 22 lbs
Weight (with shackle)	2 kg / 4.4 lbs (5 kg / 11 lbs)
Accuracy	±0.1 % of measurement range
Tare range	Max. 20 % of measurement range
Display	LCD with 22 mm / 0.9 in digit height
Units of measurement	kg / t / lb / N / kN
Sampling rate	2.5 Hz
Operating temperature	-10° C … +40° C / +14° F … +104° F
Power supply	3 x 1.5 V AA batteries
Operating time	Approx. 50 hours



Technical drawing

A B C D Ø E Ø F G H Material 260 mm 10.2 in 123 mm 4.8 in 37 mm 1.5 in 195 mm 7.7 in 51 mm 2.0 in 24 mm 0.9 in 30 mm 1.2 in 365 mm 14.4 in Aluminum
