Flow Meter PCE-BDA 10

Name: Flow Meter PCE-BDA 10
SKU: 13076
Availability: BackOrder

PCE-BDA 10

Availability : กรุณาติดต่อสอบถาม

หมวดหมู่: Flow Meter

รายละเอียดเพิ่มเติม
บทวิจารณ์ (0)

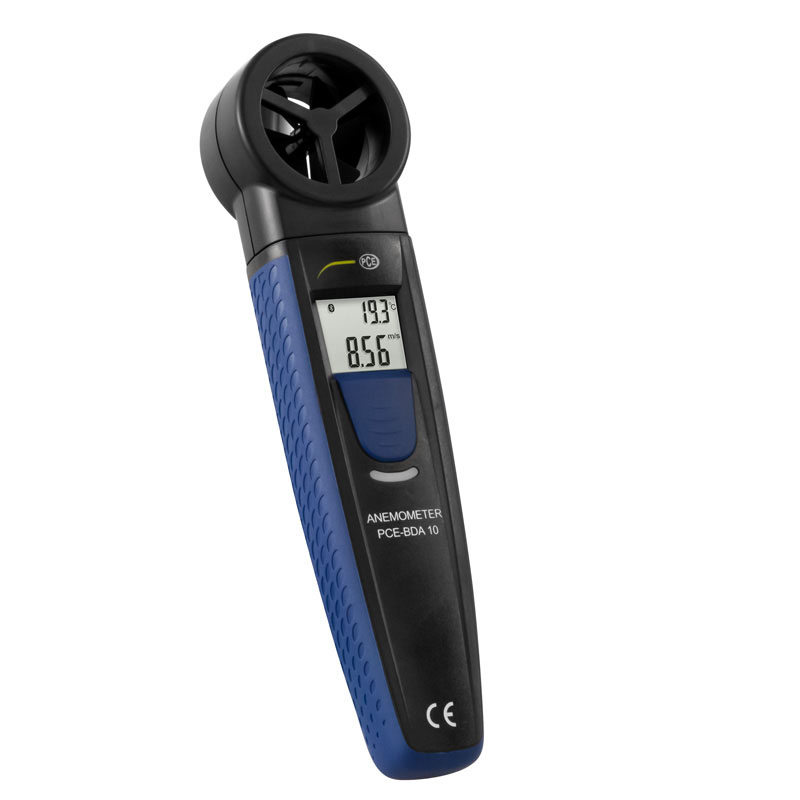

Bluetooth Flow meter�PCE-BDA 10�

Bluetooth anemometer with impeller / App for iOS and Android / Display / Battery operation

The Bluetooth Anemometer PCE-BDA 10 is an optimal measuring device for heating and plant technicians. The Bluetooth Anemometer is an easy-to-use impeller anemometer. The measuring range extends from 1 to 25 m / s. The vane anemometer displays the measured air flow in 5 different units. Furthermore, the temperature of the wind is measured by the Bluetooth anemometer.

The meter transmits the measured values to a smartphone via Bluetooth. Mobile phones with iOS or Android can be used here. In addition, the measured values are also displayed on the LCD by the Bluetooth anemometer. This allows the vane anemometer to be used without a smartphone.

– Wide measuring range up to 25 m / s
– 5 different display units
– LCD display
– Battery operation
– 32 mm impeller
– Bluetooth
– iOS and Android app.

Search “PCE” in the App Store and Google Play.�

Measurement function�airflow
Measuring range	Resolution �	Accuracy
1 … 25 m / s	0.01 m / s	± (3% from + 0.2 m / s)
3.6 … 90 km / h	0.1 km / h	± (3% from + 0.8 km / h)
196 … 4921 ft / min	1 ft / min	± (3% from + 40 ft / min)
1.9 … 48.5 knots	0.1 knots	± (3% from + 0.4 kn)
2.2 … 55.9 mph	0.1 mph	± (3% from + 0.4 mph)

Measuring function�temperature
Measuring range	Resolution �	Accuracy
0 … 50°C / 32 … 122°F	0.1°C / 0.18°F	± 2°C / 3.6°F

Automatic shutdown �	15 minutes
Ambient pressure range	500 mbar … 2000 mbar
Power supply	4 x 1.5V AAA batteries
Operating conditions	0 … 50°C / 32 … 122°F
Storage conditions	-10 … 60°C / 14 … 140°F
Dimensions	178 x 45 x 24 mm / 7 x 1.8 x 0.9 in
Weight	About 80 g / < 1 lb without batteries
