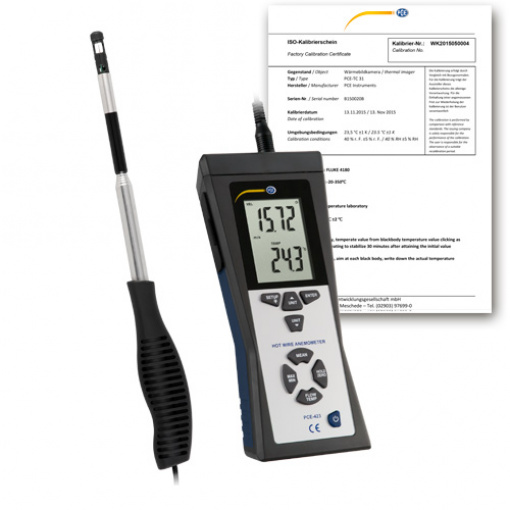

Air Flow Meter PCE-423-ICA incl. ISO calibration certificate

Name: Air Flow Meter PCE-423-ICA incl. ISO calibration certificate
SKU: 13030
Availability: BackOrder

PCE-423-ICA

Availability : กรุณาติดต่อสอบถาม

หมวดหมู่: Flow Meter

รายละเอียดเพิ่มเติม
บทวิจารณ์ (0)

High resolution Air Flow Meter to measure air velocity and temperature /

Diverse measuring units can be selected / USB data cable and software�

for real time data transference included in the delivery

The PCE-423 Air Flow Meter with thermal sensor is highlighted by its good relation between price and quality. The PCE-423 Air Flow Meter has a high resolution to be used for different applications. This PCE-423 Air Flow Meter belongs to the the basic equipment for professionals working with ventilation systems. The PCE-423 Air Flow Meter is also used in institutional research and development.

The thin probe (8 mm / .3 in diameter) makes it possible to use the Air Flow Meter in areas with a minimum range of measurement such as inside refrigeration units. Additionally, the PCE-423 Air Flow Meter has a telescopic probe with a max. length of 1 m / 3.3 ft. Both the USB cable and the software (included in the delivery), allow for the PCE-423 Air Flow Meter to be connected to a PC or laptop to transfer data continuously. Data can be stored in either txt format or csv one for further analysis.

– Measures air velocity and temperature
– Suitable for low velocity air flow
– multiple measurement units available
– Large LCD display
– Data-Hold function
– Easy-to-use
– Shows max. y min. values on the display
– Solid enclosure
– Auto shut-off to protect battery life
– Comes with telescopic thermal probe (max. length: 1 m / 3.3 ft), software, USB data cable batteries, carrying case and user’s manual

รีวิว

ยังไม่มีบทวิจารณ์

เฉพาะลูกค้าที่เข้าสู่ระบบ และเคยซื้อสินค้าชิ้นนี้แล้วเท่านั้น ที่เขียนบทวิจารณ์ได้

Measurement ranges
0.1 m/s … 25.0 m/s
20 ft/min … 4925 ft/min
0.2 kn … 48.5 kn
0.3 km/h … 90.0 km/h
0.2 mph … 55.8 mph
0.0°C … 50.0°C / 32°F … 122°F
Resolution
0.01 m/s
1 ft/min
0.1 kn
0.1 km/h
0.1 mph
0.1°C / 32.2°F
Accuracy
– Air velocity	±5% ±1digit (of the measurement field)
– Temperature	±1°C / 33.8°F
Thermal probe	Telescopic thermal probe
-Length unextended	185 mm / 7.3 in
-Length extended	1000 mm / 39.4 in
-Maximum diameter	12 mm / 0.5 in
-Minimum diameter	10 mm / 0.4 in
Measurement quota	Approx. 0.8 s
Display	LCD display 46.7 mm x 60 mm / 1.8 in x 2.4 in
Interface	USB
Operating conditions	0°C … 50°C / 32°F … 122°F 80% H.r.
Power	9V battery
Auto shut-off	After 5 min. of inactivity
Dimensions	210 mm x 75 mm x 50 mm / 8.3 in x 3.0 in x 2.0 in
Enclosure	ABS plastic
Weight	280 g / < 1 lb

Air Flow Meter PCE-423-ICA incl. ISO calibration certificate
