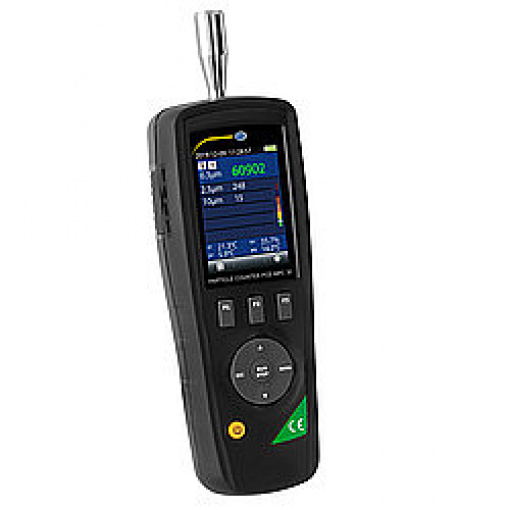

Environmental Testing Device with data logger / HCHO measurement / battery for mobile use /�2.8 “TFT display / measurement of mass concentration / data storage on SD card
This Environmental Testing Device has many functions. With the Environmental Testing Device it is possible to determine the number of particles in the size of 0.3, 2.5 and 10 µm. In addition to measuring the particles, the Environmental Testing Device can also measure the PM 2.5 and PM 10 mass concentration. The mass concentration of the Environmental Testing Device determines the weight of the particles on one cubic meter.
In addition to particle measurement, the Environmental Testing Device can also determine the formaldehyde content in ppm. During this HCHO measurement, the temperature, the ambient humidity and the dew point are determined and displayed by the Environmental Testing Device. As a further important property, the Environmental Testing Device can also store data. It is therefore possible with the Environmental Testing Device to evaluate all measured values after a measurement.
– Particle counter, HCHO, temperature measurement
– Measured value recording for later analyzes
– Large 2.8 “LC display, 320 x 240 pixels
– Mass concentration PM 2.5 and PM 10
– Battery for mobile use
– Dew point and wet bulb temperature
Measurable particle sizes | PM 2.5 and PM 10 |
Measuring range | 0 … 2000 µg / m³ |
Resolution | 1 µg / m³ |
Particle counter | |
Measurable particle sizes | 0.3, 2.5, 10 µm |
Flow rate | 2.83L / min (0.1 ft³) |
Counting efficiency | 50% at 0.3 µm; |
100% with particle size> 0.45 µm | |
Coincidence error | <5% at 2,000,000 particles per ft³ |
Data storage | 5000 data records (micro SD card) |
Counting modes | cumulative, differential, concentration |
HCHO | |
Measuring range | 0.01 … 5.00 ppm |
Accuracy | ± 5% |
Resolution | 0.01 ppm |
Air temperature and relative humidity | |
Measuring range air temperature | 0 … 50 ° C, 32 … 122 ° F |
Measuring range dew point | 0 … 50 ° C, 32 … 122 ° F |
Relative humidity measuring range | 0 … 100% RH |
Air temperature measurement accuracy | 10 … 40 ° C: ± 1 ° C, ± 1.8 ° F |
Others: ± 2 ° C, ± 3.6 ° F | |
Measuring accuracy dew point temperature | 10 … 40 ° C: ± 1 ° C, ± 1.8 ° F |
Others: ± 2 ° C, ± 3.6 ° F | |
Relative humidity accuracy | 0 … 20% rel. Humidity: ± 5% |
20 … 80% rel. Humidity: ± 3.5% | |
80 … 100% rel. Fencing: ± 5% | |
More specifications | |
Operating conditions | 0 … +50 ° C, 10 … 90% rel. humidity, |
not condensing | |
Storage conditions | -10 … +60 ° C, 10 … 90% rel. humidity, |
not condensing | |
Display | 2.8 “, 320 x 240 pixels, backlit color LCD |
Power supply mains adapter | Primary: 100 … 240 V AC, 50/60 Hz, 0.6 A. |
Secondary: 9 V DC, 1500 mA | |
Power supply battery | 7.4 V, 1200 mAh, 8.88 Wh |
Battery Life | approx. 4 hours in continuous operation |
Battery recharge time | approx. 2 hours with AC adapter |
Dimensions | 240 x 75 x 57 mm |
Weight | 570 g |
